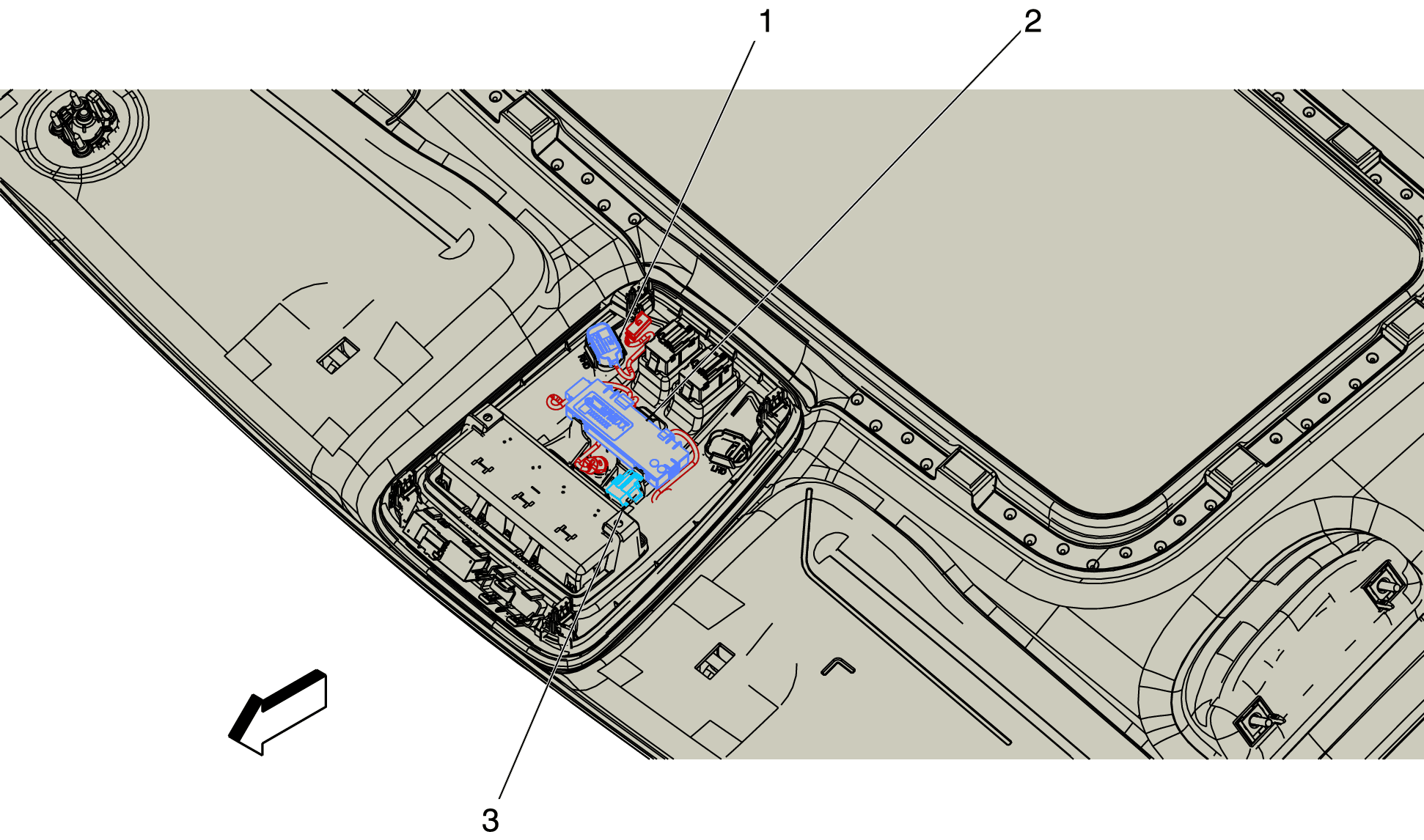

Overhead Console Components (1 of 2)

GM3752859Courtesy of GENERAL MOTORS COMPANY
Overhead Console Components (1 of 2)

Items
1. B24 Mobile Telephone Microphone B24 Mobile Telephone Microphone
2. S88 Sunroof Tilt Switch S88 Sunroof Tilt Switch
3. S72 Sunroof Switch S72 Sunroof Switch
