Right Front Engine Compartment Components (2 of 2)

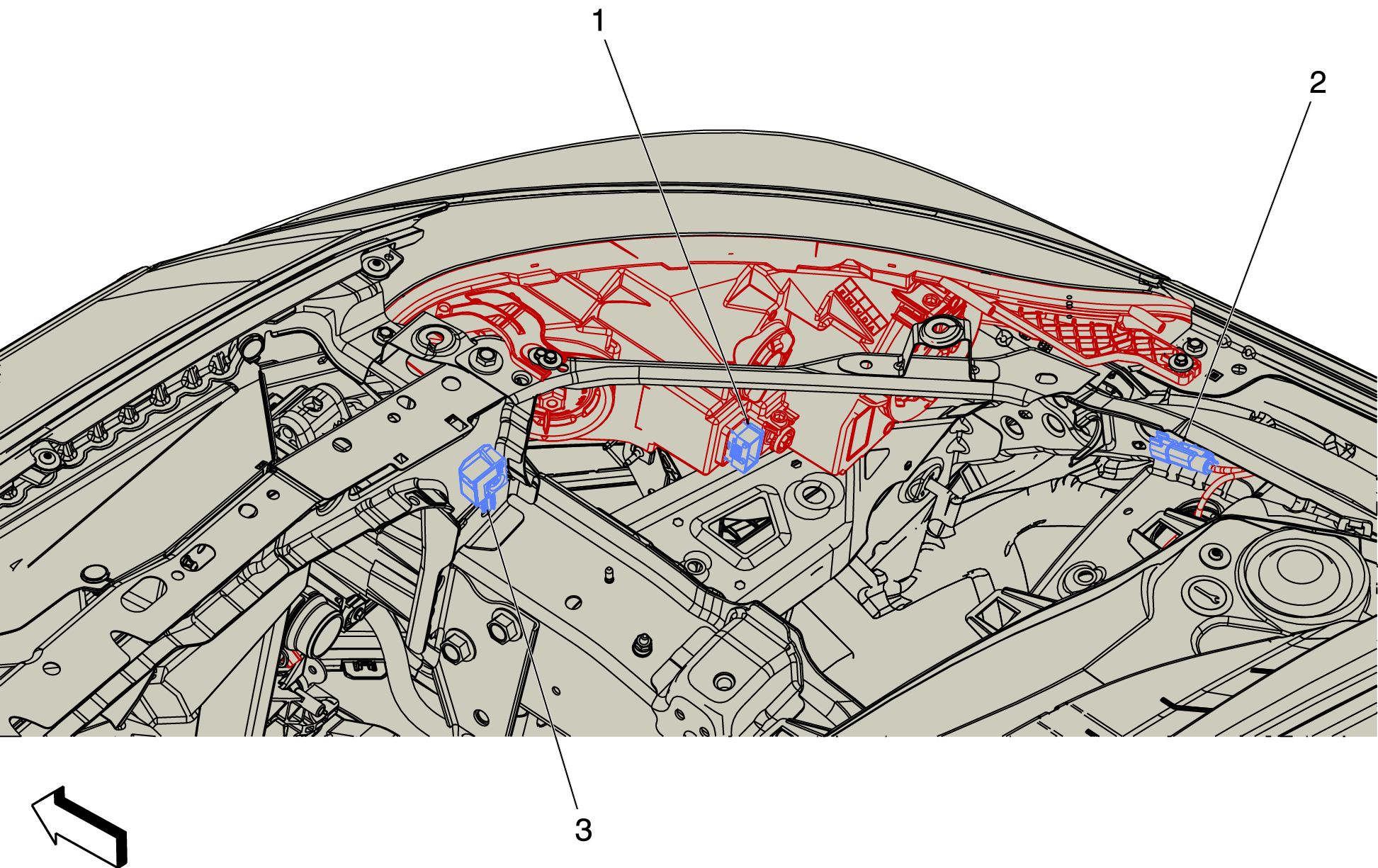

GM4775631Courtesy of GENERAL MOTORS COMPANY
Right Front Engine Compartment Components (2 of 2)

Items
1. E13RA Headlamp Assembly - Right
2. B5RF Wheel Speed Sensor - Right Front B5RF Wheel Speed Sensor - Right Front
3. B59R Front Impact Sensor - Right B59R Front Impact Sensor - Right
