Passenger Door Components (1 of 2)

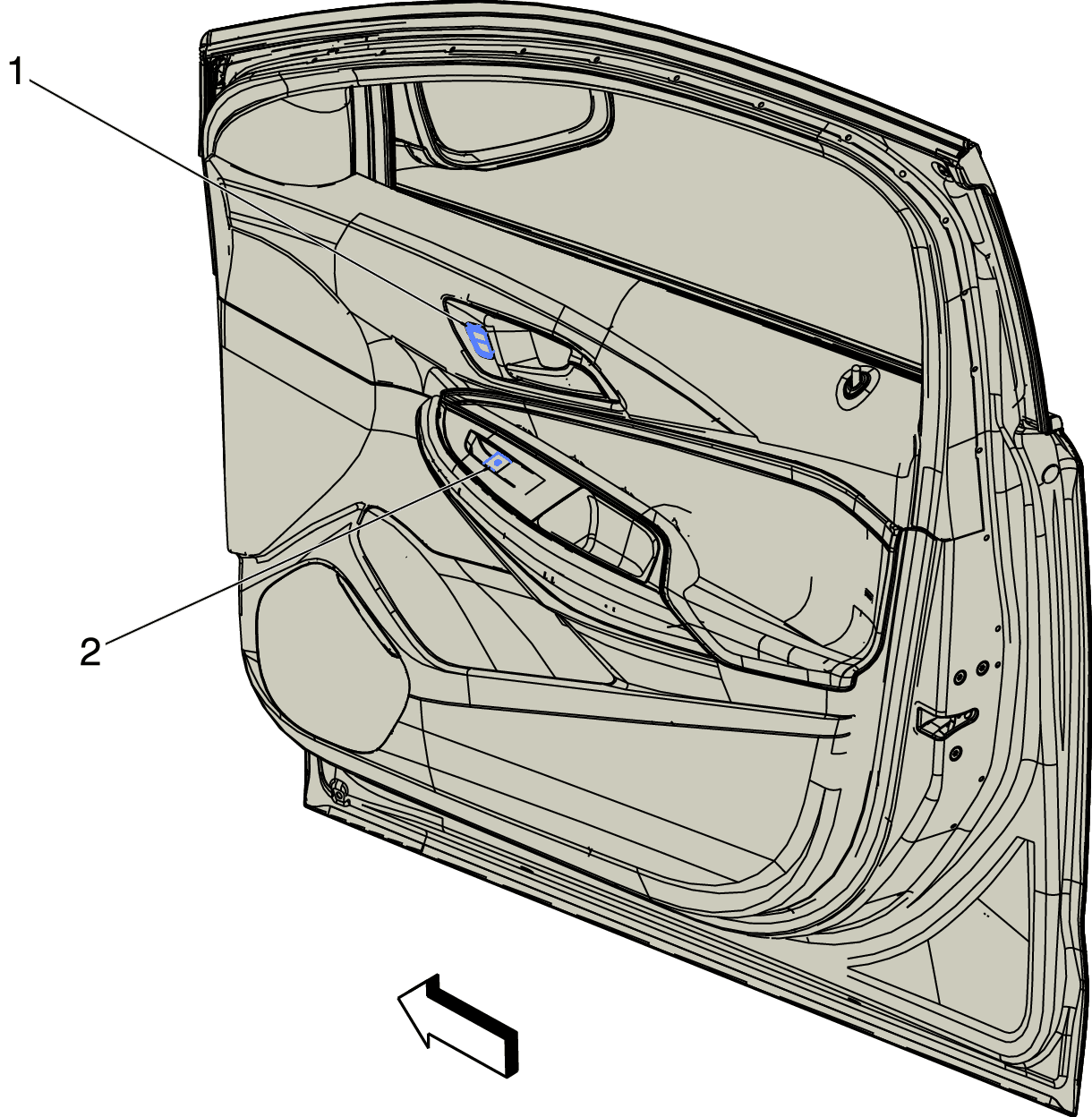

GM3752926Courtesy of GENERAL MOTORS COMPANY
Passenger Door Components (1 of 2)

Items
1. S13P Door Lock Switch - Passenger S13P Door Lock Switch - Passenger
2. S79P Window Switch - Passenger S79P Window Switch - Passenger (AED)
