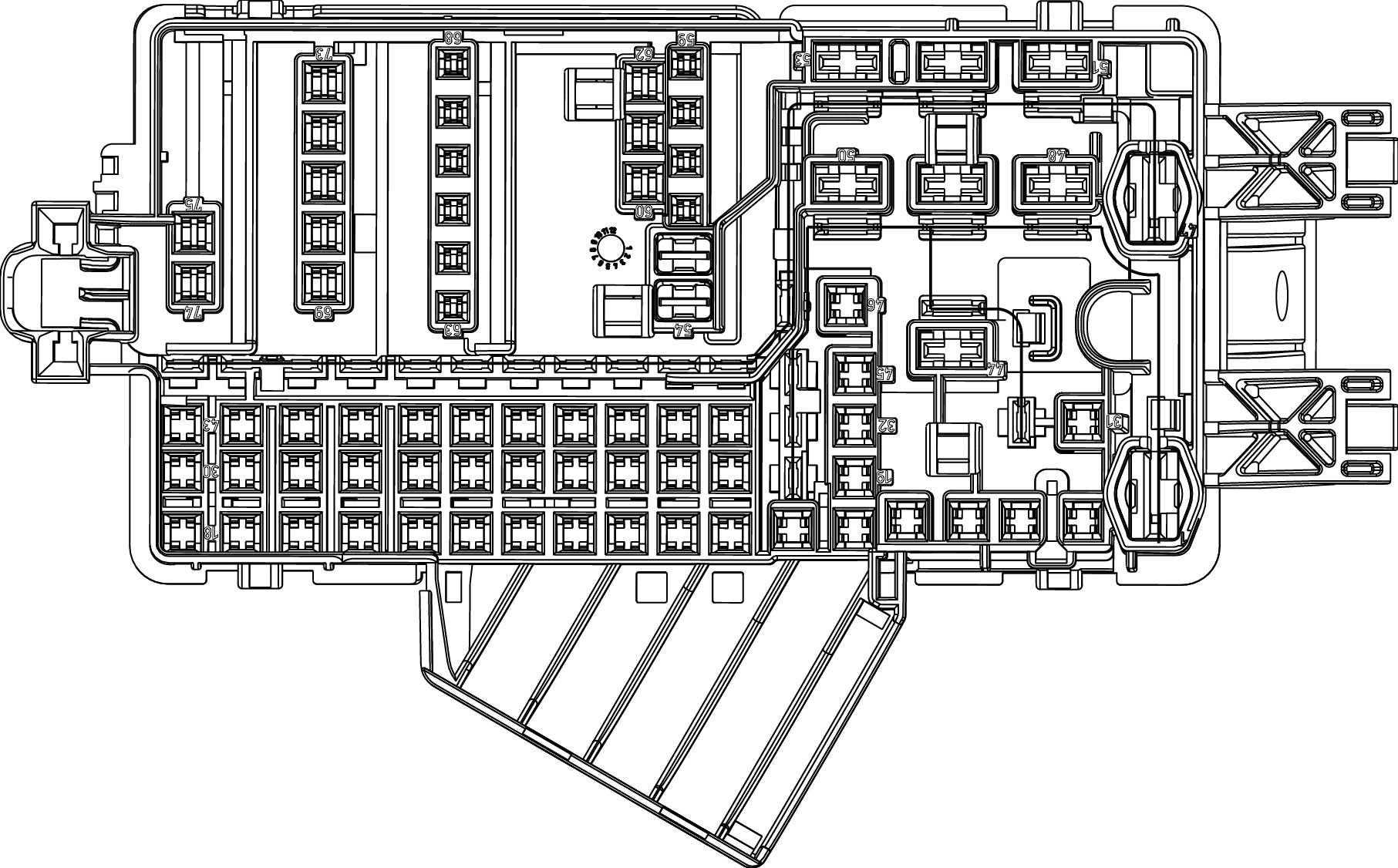

X51A Fuse Block - Instrument Panel Wire Entry
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray Name | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | 13327116 | J-35616-35 (VT) | J-38125-215A | Not Required | Not Required | Not Required | Not Required |
| II | 13327178 | J-35616-43 (RD) | J-38125-215A | Not Required | Not Required | Not Required | Not Required |
| III | 13575490 | J-35616-35 (VT) | J-38125-215A | Not Required | Not Required | Not Required | Not Required |
| IV | 13575491 | J-35616-35 (VT) | J-38125-215A | Not Required | Not Required | Not Required | Not Required |
| V | 13575541 | J-35616-35 (VT) | J-38125-215A | Not Required | Not Required | Not Required | Not Required |
| VI | 13575774 | J-35616-14 (GN) | J-38125-215A | Not Required | Not Required | Not Required | Not Required |
| VII | 13575780 | J-35616-35 (VT) | J-38125-215A | Not Required | Not Required | Not Required | Not Required |
| VIII | 13575781 | J-35616-35 (VT) | J-38125-215A | Not Required | Not Required | Not Required | Not Required |
| IX | 13579967 | J-35616-14 (GN) | J-38125-215A | Not Required | Not Required | Not Required | Not Required |
| X | 13579980 | J-35616-22 (RD) | J-38125-11A | Not Required | Not Required | Not Required | Not Required |
| XI | 19368322 | J-35616-43 (RD) | J-38125-215A | Not Required | Not Required | Not Required | Not Required |
| XII | Not Required | No Tool Required | No Tool Required | Not Required | Not Required | Not Required | Not Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 6 | RD/YE | 2340 | Battery Positive Voltage | X | - |
| 2 | 1.5 | RD/VT | 842 | Battery Positive Voltage | IV | - |
| 3 | 1.5 | VT | 1301 | Retained Accessory Power Fuse Control | IV | - |
| 4 | 2.5 | RD/YE | 2340 | Battery Positive Voltage | VIII | - |
| 5 | 0.35 0.35 |
RD/VT RD/VT |
5640 5640 |
Battery Positive Voltage Battery Positive Voltage |
VII III |
Hatchback Notchback |
| 6 | 2.5 | RD/GY | 5540 | Battery Positive Voltage | VIII | - |
| 7 | 1 1 |
RD/BN RD/YE |
4240 4340 |
Battery Positive Voltage Battery Positive Voltage |
I | - - |
| 8 | 1.5 | RD/YE | 2340 | Battery Positive Voltage | IV | - |
| 9 | 2.5 | RD/GY | 5540 | Battery Positive Voltage | VIII | - |
| 10 | 0.5 | VT | 2801 | Retained Accessory Power Fuse Ignition | VII | - |
| 11 | 0.5 | VT | 801 | Retained Accessory Power Fuse Control | VII | - |
| 12 | 1.5 | VT/YE | 343 | Accessory Ignition Voltage | IV | - |
| 13 | 1.5 | RD/YE | 2340 | Battery Positive Voltage | IV | - |
| 14 | 0.5 | RD/VT | 842 | Battery Positive Voltage | VII | - |
| 15 | 2.5 2.5 |
RD/YE RD/GY |
2172 5540 |
12V Regulated Supply Voltage 1 Battery Positive Voltage |
VIII VIII |
KL9 -KL9 |
| 16 | 2.5 2.5 |
RD/YE RD/GY |
2172 5540 |
12V Regulated Supply Voltage 1 Battery Positive Voltage |
VIII VIII |
KL9 UE1-KL9 |
| 17 | 2.5 2.5 |
RD/YE RD/GY |
2172 5540 |
12V Regulated Supply Voltage 1 Battery Positive Voltage |
VIII VIII |
KL9 -KL9 |
| 18 | 2.5 2.5 |
RD/YE RD/GY |
2172 5540 |
12V Regulated Supply Voltage 1 Battery Positive Voltage |
VIII VIII |
KL9 -KL9 |
| 19 | 0.5 | RD/BN | 1440 | Battery Positive Voltage | VII | - |
| 20 | 1.5 | RD/BN | 4240 | Battery Positive Voltage | IV | - |
| 21 | 2.5 | RD/BN | 1140 | Battery Positive Voltage | VIII | - |
| 22 | 1.5 | RD/VT | 842 | Battery Positive Voltage | IV | - |
| 23 | 0.5 | RD/VT | 842 | Battery Positive Voltage | VII | - |
| 24 | 1.5 | RD/VT | 842 | Battery Positive Voltage | IV | - |
| 25 | 0.35 | RD/BN | 2940 | Battery Positive Voltage | VII | - |
| 26 | 0.5 0.5 |
VT VT/YE |
4601 5985 |
Retained Accessory Power Fused Control Accessory Wakeup Serial Data |
V V |
K4C KI4 |
| 27 | 0.35 0.5 |
RD/GN RD/GN |
5140 5140 |
Battery Positive Voltage Battery Positive Voltage |
VII III |
-UFG-UKC UKC/UFG |
| 28 | 0.5 | RD/BU | 5240 | Battery Positive Voltage | VII | - |
| 29 | 0.75 | RD/VT | 5340 | Battery Positive Voltage | VII | - |
| 30 | 1 | RD/WH | 5440 | Battery Positive Voltage | VII | - |
| 31 | 2.5 | RD/VT | 1640 | Battery Positive Voltage | VIII | - |
| 32 | 2.5 | RD/GY | 1740 | Battery Positive Voltage | VIII | - |
| 33 | 1.5 | RD/GY | 4840 | Battery Positive Voltage | IV | - |
| 34 | 1.5 | RD/WH | 4740 | Battery Positive Voltage | IV | - |
| 35 | 1.5 | RD/YE | 4440 | Battery Positive Voltage | IV | - |
| 36 | 0.5 | RD/WH | 2640 | Battery Positive Voltage | VII | - |
| 37 | 0.75 | RD/BN | 2240 | Battery Positive Voltage | VII | - |
| 38 | 0.75 | RD/GN | 742 | Battery Positive Voltage | VII | - |
| 39 | 0.75 | RD/BU | 5240 | Battery Positive Voltage | VII | - |
| 40 | 0.5 | RD/WH | 4042 | Battery Positive Voltage | VII | - |
| 41 | 0.5 | RD/GN | 2440 | Battery Positive Voltage | VII | - |
| 42 | 0.35 | RD/BU | 42 | Battery Positive Voltage | VII | - |
| 43 | 0.5 | RD/VT | 3340 | Battery Positive Voltage | VII | - |
| 44 | 2.5 | RD/WH | 342 | Battery Positive Voltage | II | - |
| 45 | 1.5 | RD/BU | 4540 | Battery Positive Voltage | IV | - |
| 46 | 2.5 | RD/BN | 440 | Battery Positive Voltage | VIII | - |
| 47 | 6 | RD/GY | 5540 | Battery Positive Voltage | X | - |
| 48 | 4 | RD/BU | 840 | Battery Positive Voltage | XI | - |
| 49 | 2.5 | RD/BN | 3640 | Battery Positive Voltage | II | - |
| 50 | 2.5 | RD/YE | 3740 | Battery Positive Voltage | II | - |
| 53 | 2.5 | RD/BN | 4940 | Battery Positive Voltage | II | - |
| 54 - 57 | - | - | - | Not Occupied | - | - |
| 58 | 0.5 | GY/VT | 755 | RAP Relay Coil Control | VI | - |
| 59 | 0.13 | GY/BN | 6188 | Lift Glass/Rear Compartment Lid Motor Release Control | IX | - |
| 60 | 2.5 | RD/YE | 2340 | Battery Positive Voltage | VIII | - |
| 61 | 1.5 | BK | 2250 | Ground | IV | - |
| 62 | 2.5 | RD/VT | 842 | Battery Positive Voltage | VIII | - |
| 63 - 64 | - | - | - | Not Occupied | - | - |
| 65 | 0.75 | BU/WH | 6128 | Rear Closure Unlatch Motor Unlatch Control | VI | - |
| 66 | - | - | - | Not Occupied | - | - |
| 67 | 0.75 | RD/BU | 5240 | Battery Positive Voltage | VI | - |
| 68 | 0.75 | BK | 1650 | Ground | VI | - |
| 69- 75 | - | - | - | Not Occupied | - | - |
| BB1 | 10 | RD/BU | 42 | Battery Positive Voltage | XII | - |
| BB2 | 10 | RD/BU | 42 | Battery Positive Voltage | XII | - |
