Parking Brake Indicator Switch Replacement (Hand Operated - J69)

Courtesy of GENERAL MOTORS COMPANY

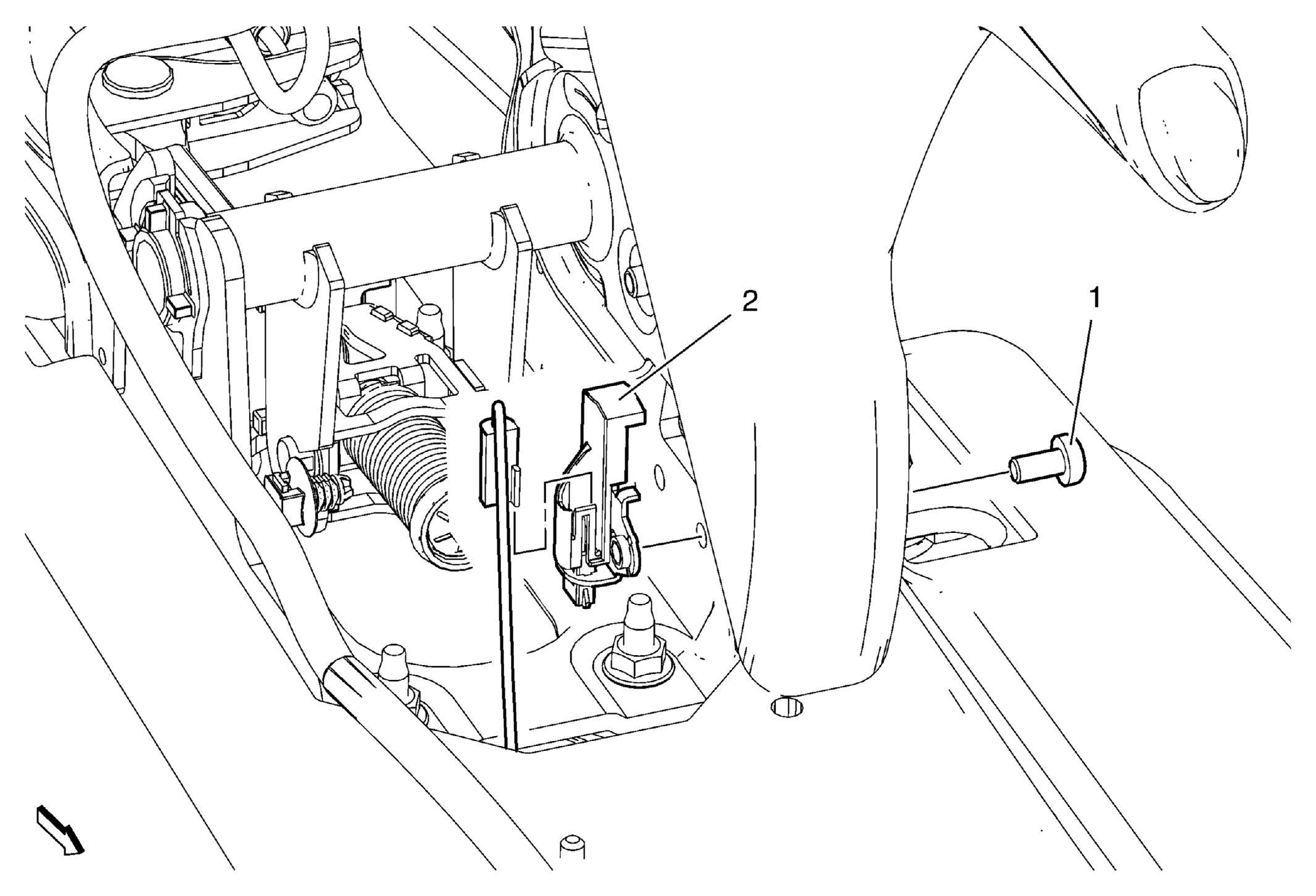

Callout	Component Name
Preliminary Procedure  Front Floor Console Replacement (D06)Front Floor Console Replacement (DBU)
1	Parking Brake Indicator Switch Bolt CAUTION: Fastener Caution Tighten  2.5N.m (22 lb in)
2	Parking Brake Indicator Switch Procedure  Disconnect the electrical connector.
