Rear Brake Intermediate Pipe Replacement

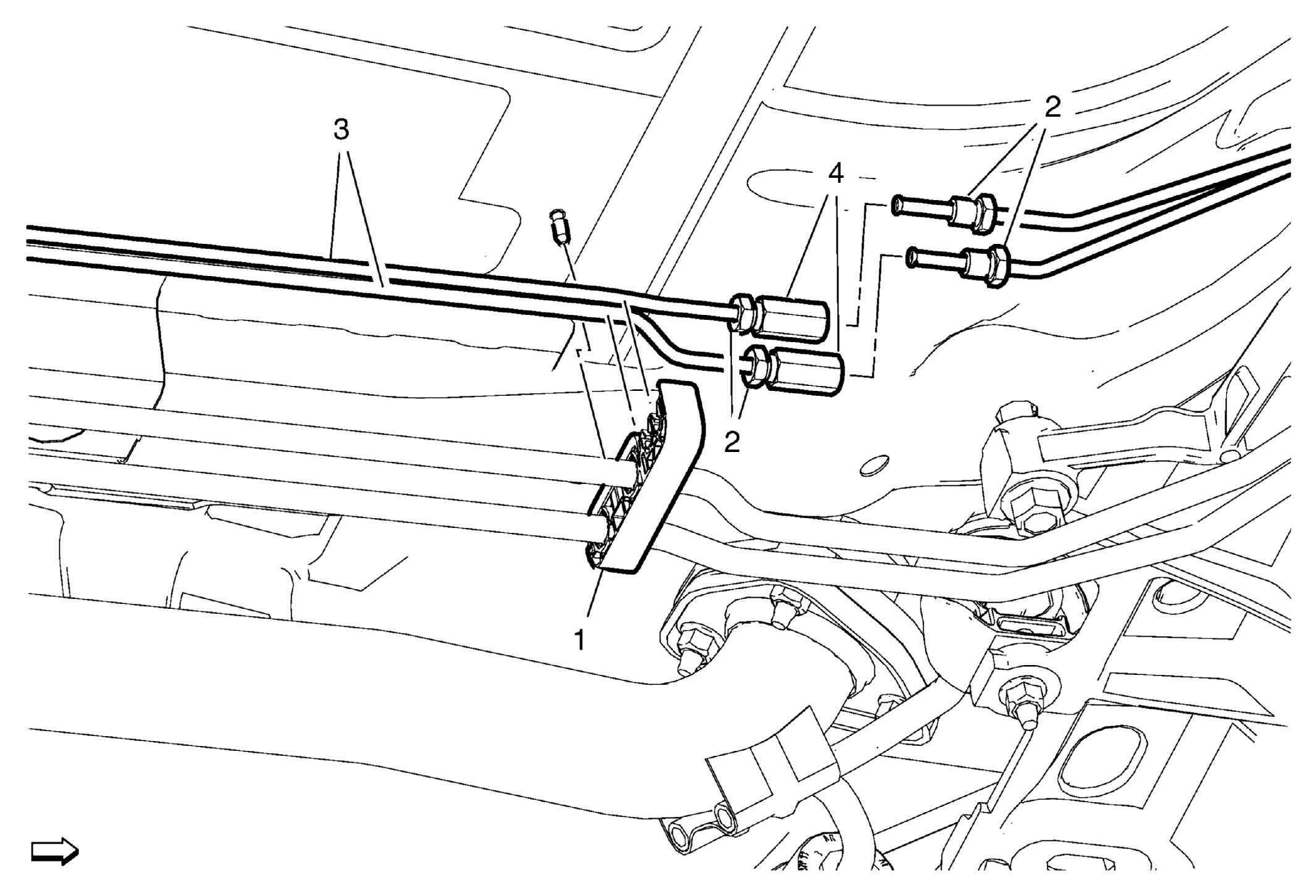

| Callout | Component Name |
|---|---|
|
WARNING:
Refer to Brake Fluid Irritant Warning .
CAUTION:
Refer to Brake Fluid Effects on Paint and Electrical Components Caution . |
|
| 1 | Clip [4x]
NOTE:
Do not separate the clip. |
| 2 | Brake Pipe Fitting [8x]
NOTE:
Cap the brake pipe inlet ports and the brake pipe outlet ports to prevent brake fluid loss and contamination. Tighten 20N.m (15 lb ft) |
| 3 | Rear Brake Intermediate Pipe [2x] Procedure Prepare the NEW brake pipe for installation. Brake Pipe Replacement |
| 4 | Brake Pipe Union [4x] Procedure Bleed the brake system. Hydraulic Brake System Bleeding |
