Installation Procedure

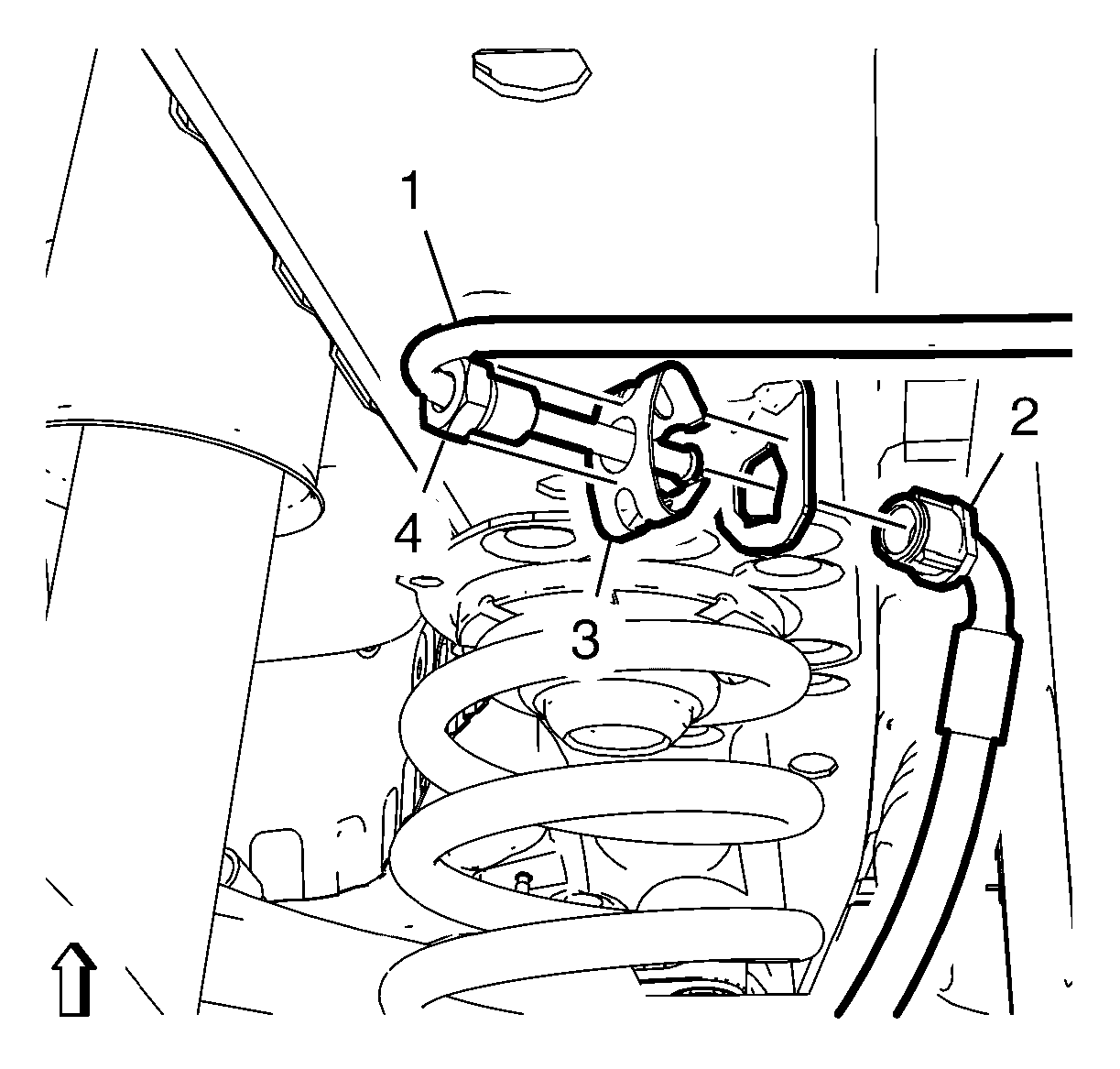

Install the rear brake hose to the vehicle. (2)
- Brake Hose Retainer (3)@Rear Brake Hose (2) - Install
- Remove the cap from the brake pipe fitting.
- Brake Pipe Fitting (4)@Rear Brake Hose (2) - Tighten 20 N.m (15 lb ft)

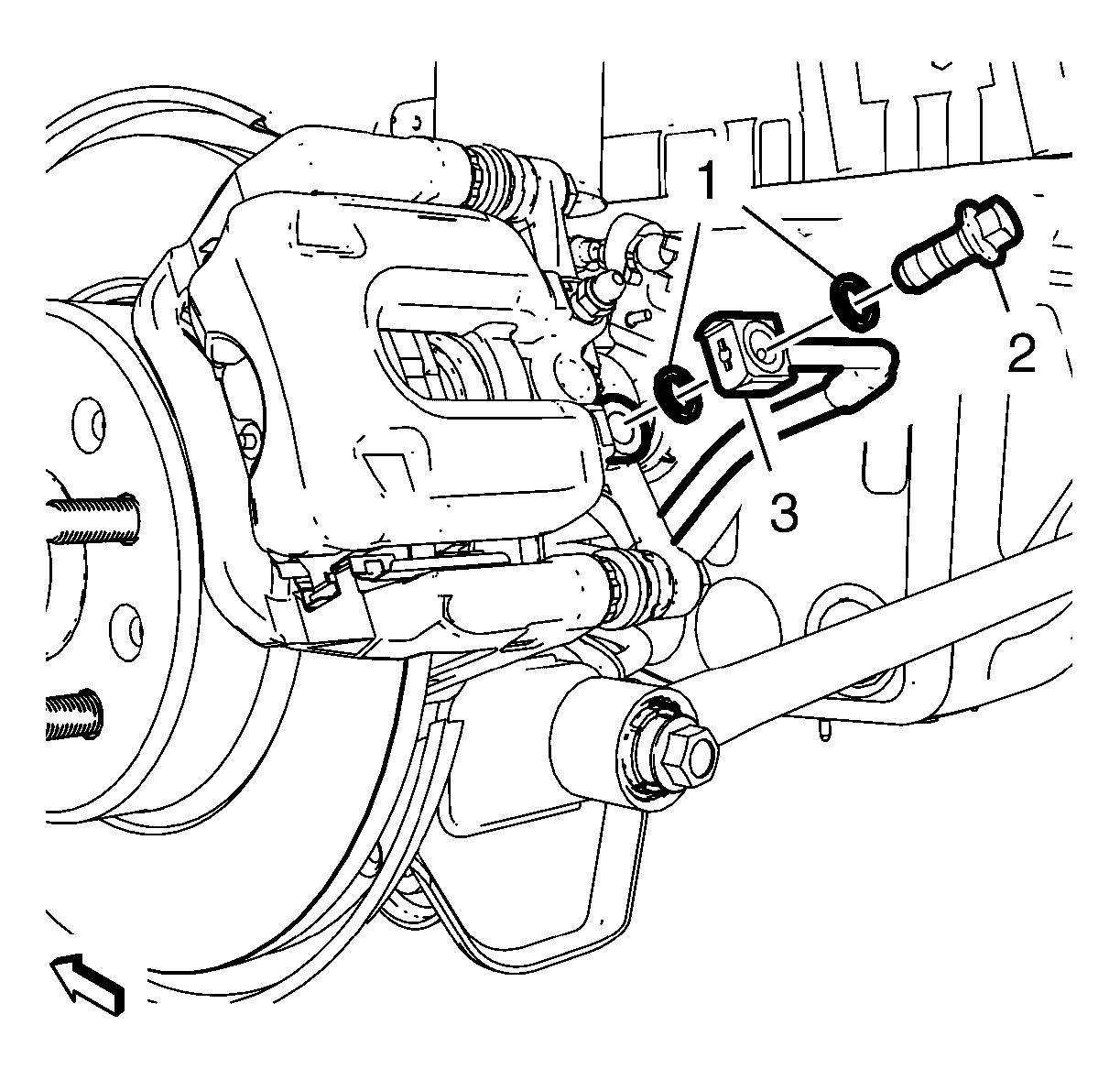

Remove the cap from the brake caliper inlet port and the brake pipe fitting.
- Install NEW brake hose fitting gaskets. (1) [2x]
- Rear Brake Hose (3)@Brake Hose Fitting Bolt (2) - Tighten 40 N.m (30 lb ft)
- Hydraulic Brake System Bleeding
- Tire and Wheel Removal and Installation - Install
CAUTION:
Refer to Fastener Caution .
