Installation Procedure

  1. GM3655404Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure all passages of the vacuum pipe are clean and free of debris prior to installation.

    { If equipped } Power Brake Booster Vacuum Sensor (2) - Connect

  2. Power Brake Booster Vacuum Pipe (4)@Power Brake Booster - Connect
  3. Power Brake Booster Vacuum Pipe (4)@Hose Clip (1) - Connect
  4. { If equipped } Connect the electrical connector. (3)

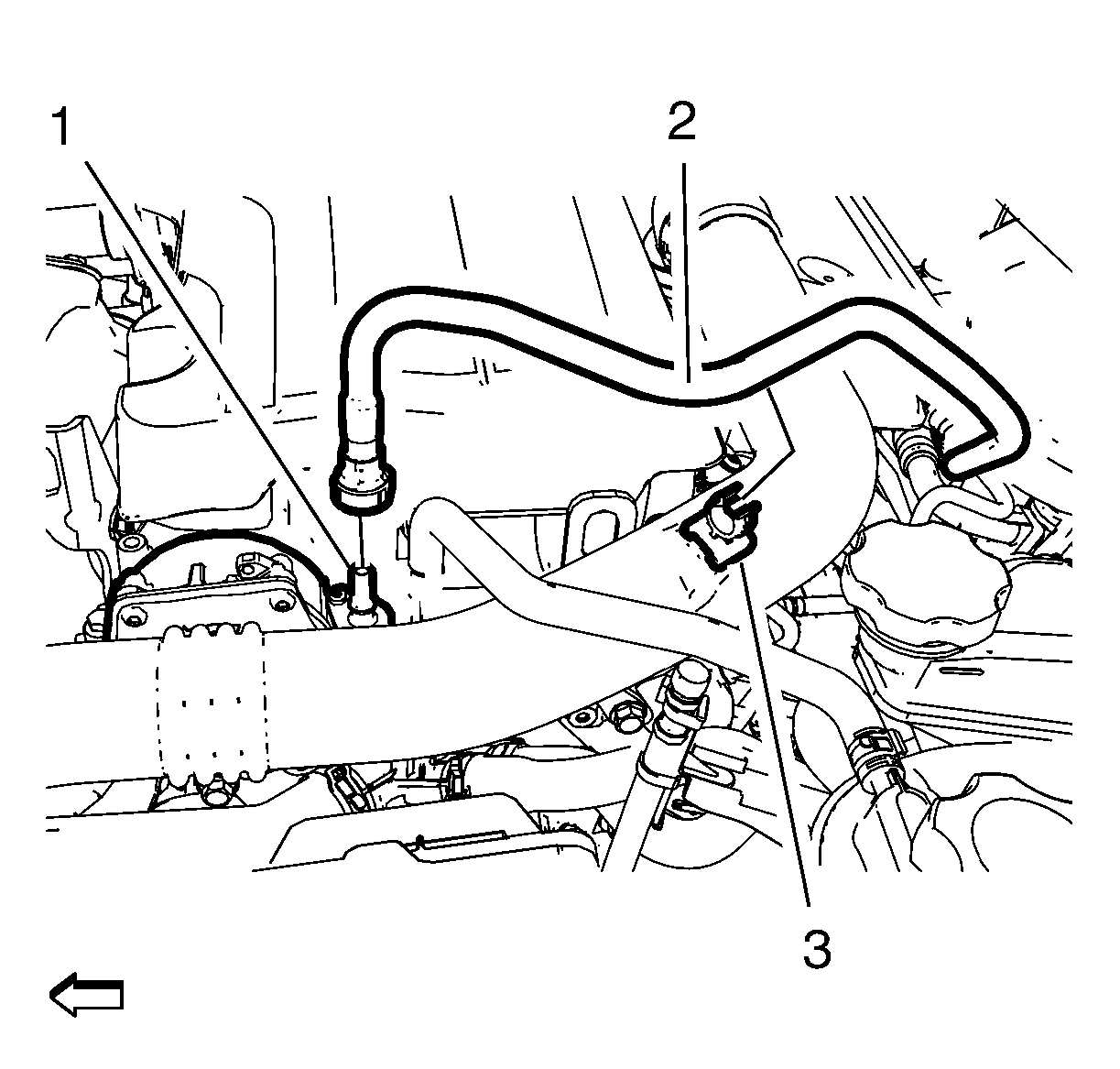

  5. GM3655403Courtesy of GENERAL MOTORS COMPANY

    Power Brake Booster Vacuum Pipe (2)@Hose Clip (3) - Connect

    6. NOTE:

    Ensure all passages of the vacuum pump are clean and free of debris prior to installation.

  6. Power Brake Booster Vacuum Pipe (2)@Vacuum Pump (1) - Connect
