Front Compartment Air Deflector Replacement

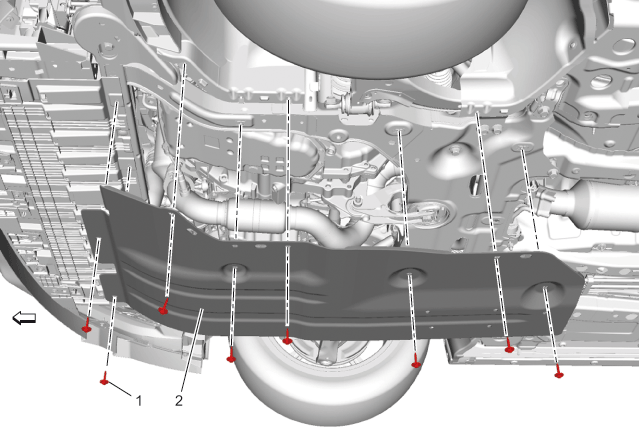

GM4297790Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Compartment Air Deflector Fastener [8x]
CAUTION:

Fastener Caution


Tighten
2.5N.m (22 lb in)
2 Front Compartment Air Deflector
