Rear Window Panel Trim Replacement

Courtesy of GENERAL MOTORS COMPANY

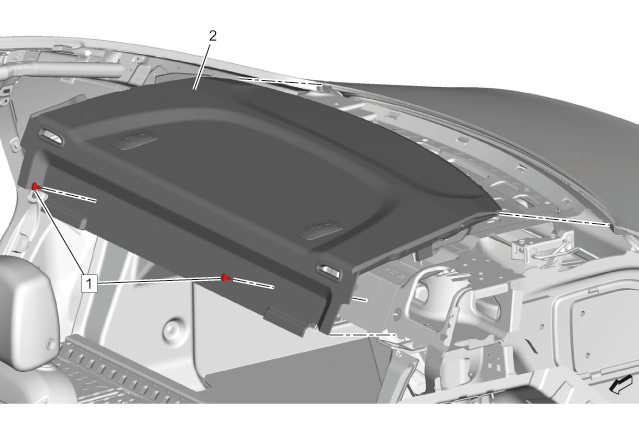

Callout	Component Name
Preliminary Procedure Body Side Rear Window Garnish Molding Replacement Child Seat Top Strap Bracket Access Hole Cover Replacement Remove the rear seat belt retractor lower bolts. Rear Seat Belt Retractor Replacement (Notchback)Rear Seat Belt Retractor Replacement (Hatchback)
1	Rear Window Panel Trim Retainer [3x]
2	Rear Window Panel Trim Procedure Route the seat belts through the rear window panel openings.

Callout

Component Name

Preliminary Procedure

Rear Window Panel Trim Retainer [3x]

Rear Window Panel Trim
Procedure
Route the seat belts through the rear window panel openings.
