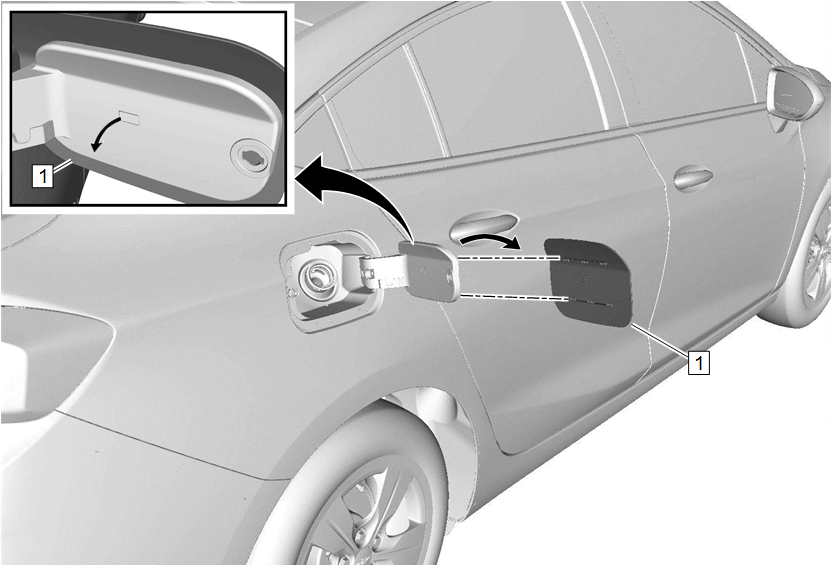

Fuel Tank Filler Door Replacement
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Fuel Tank Filler Door
Procedure
Open the fuel tank filler door to full open position.
Use the appropriate tool to release the detent on the fuel tank filler pipe housing hinge indicated by the arrow.
Slide the fuel tank filler door off the fuel tank filler pipe housing hinge.
