Rear Side Door Upper Hinge and Lower Hinge Replacement

Courtesy of GENERAL MOTORS COMPANY

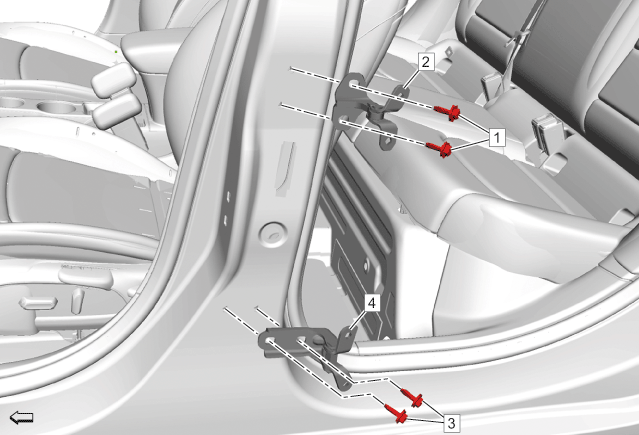

Callout	Component Name
Preliminary Procedures Rear Side Door Replacement
1	Rear Side Door Upper Hinge Bolt [2x] CAUTION: Fastener Caution Tighten  32 N.m (24 lb ft)
2	Rear Side Door Upper Hinge
3	Rear Side Door Lower Hinge Bolt [2x] Tighten  32 N.m (24 lb ft)
4	Rear Side Door Lower Hinge
