Liftgate Strut Replacement

Courtesy of GENERAL MOTORS COMPANY

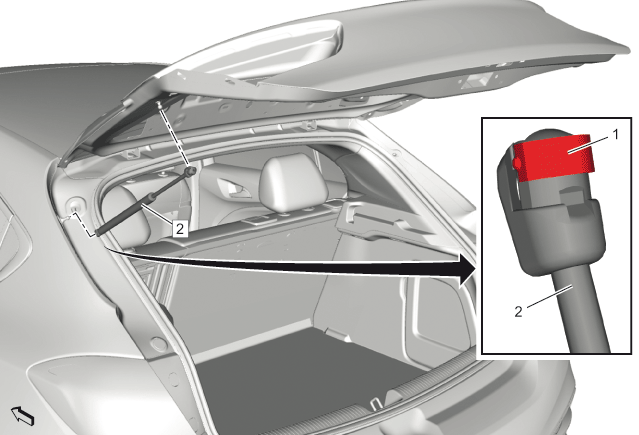

Callout	Component Name
WARNING: When a lift gate hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.
1	Liftgate Strut Locking Tab [2x] Procedure Release the locking tabs on the strut. Ensure the clip is fully seated when the strut is reinstalled. If the clip cannot be fully seated, a new strut should be installed.
2	Liftgate Strut

Callout

Component Name

WARNING:

When a lift gate hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

Liftgate Strut Locking Tab [2x]

Procedure

Release the locking tabs on the strut.
Ensure the clip is fully seated when the strut is reinstalled. If the clip cannot be fully seated, a new strut should be installed.

Liftgate Strut
