Hood Hinge Replacement

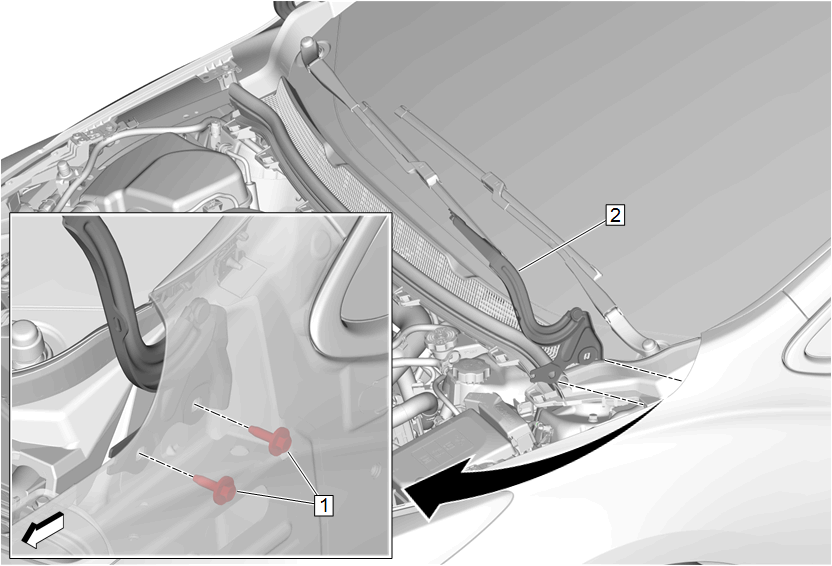

GM4707506Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Hood Replacement
1 Hood Hinge Bolt [2x]
CAUTION:

Fastener Caution


Tighten
22 N.m (16 lb ft)
2 Hood Hinge
