Radio Rear Side Door Speaker Replacement

Courtesy of GENERAL MOTORS COMPANY

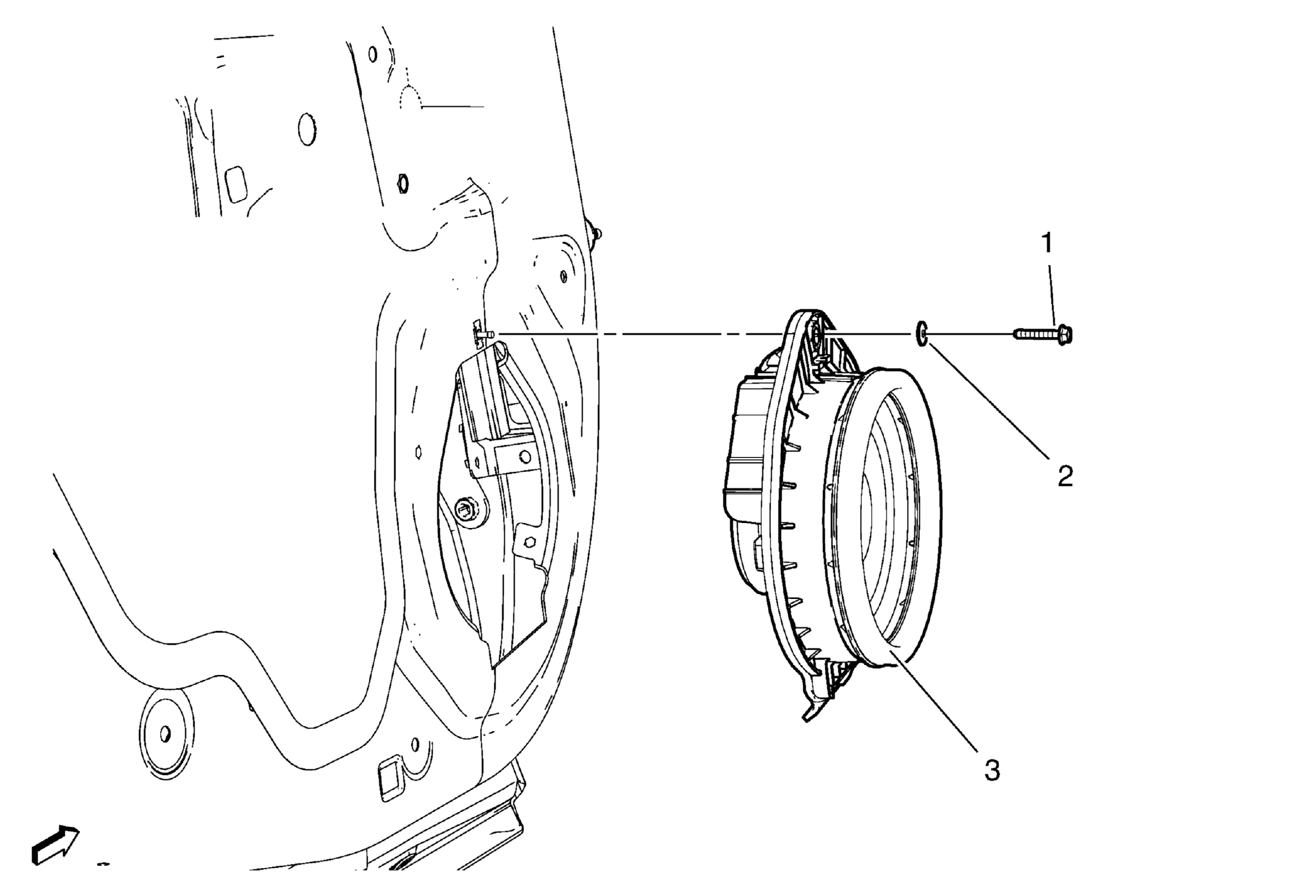

Callout	Component Name
Preliminary Procedures  Remove rear side door trim. Refer to Rear Side Door Trim Replacement .
1	Radio Rear Side Door Speaker Bolt CAUTION: Refer to Fastener Caution . Tighten:  2.5 N.m (22 lb in)
2	Radio Rear Side Door Speaker Washer
3	Radio Rear Side Door Speaker Procedure  Disconnect electrical connector.
