Radio Rear Compartment Speaker Replacement

Courtesy of GENERAL MOTORS COMPANY

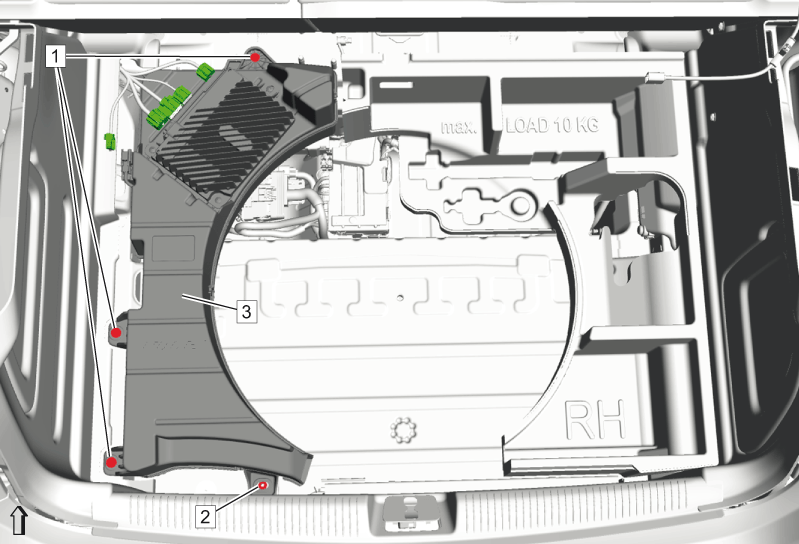

Callout	Component Name
Preliminary Procedure  Rear Compartment Floor Panel Trim Replacement (Notchback)Rear Compartment Floor Panel Trim Replacement (Hatchback)
1	Radio Rear Compartment Speaker Bolt [3x] CAUTION: Fastener Caution Tighten  6N.m (53 lb in)
2	Radio Rear Compartment Speaker Nut Tighten  6N.m (53 lb in)
3	Radio Rear Compartment Speaker Procedure  Disconnect the electrical connectors.
