Fuel Feed Pipe Replacement (LT1, LT4)

Courtesy of GENERAL MOTORS COMPANY

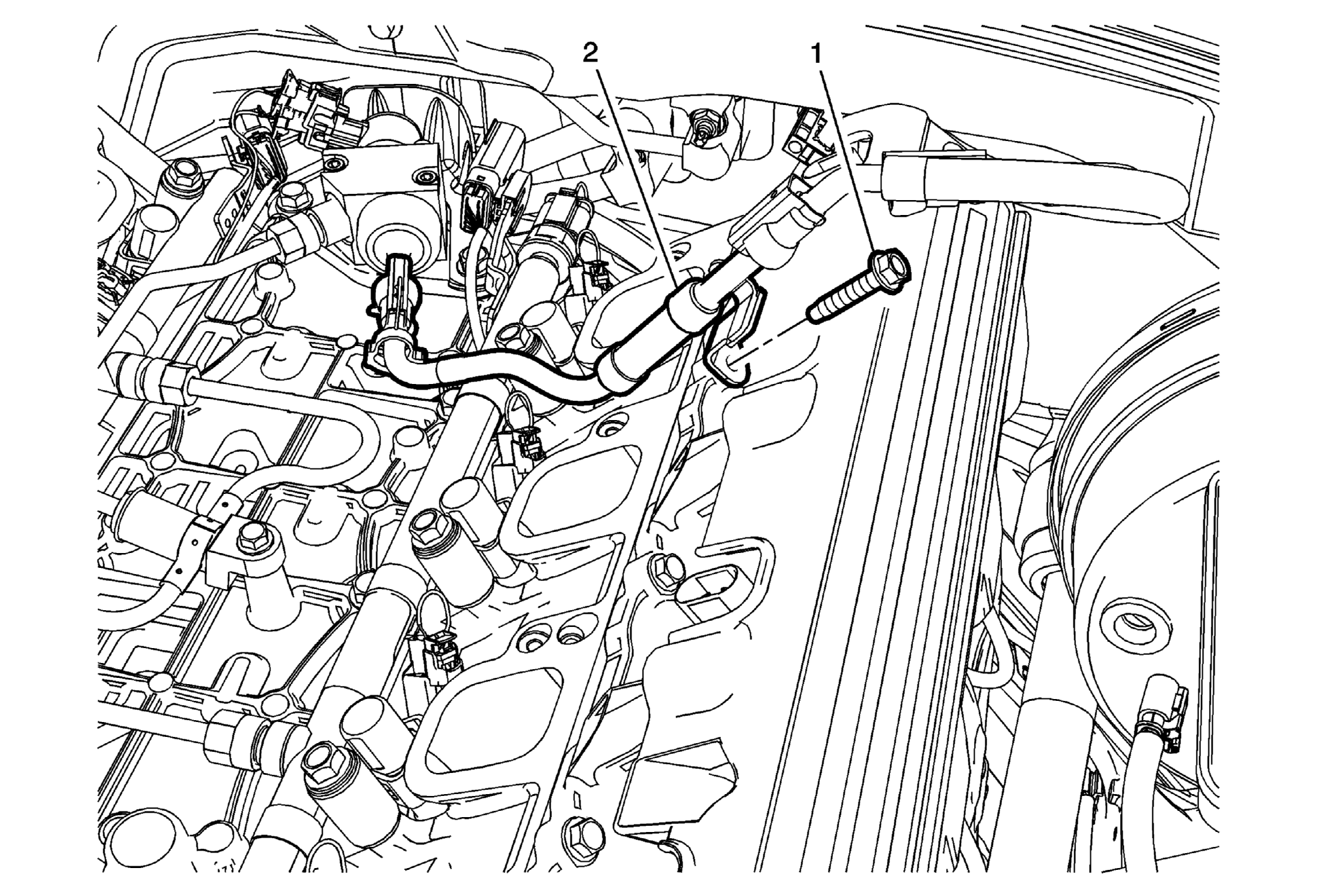

Callout	Component Name
Preliminary Procedures Relieve the fuel pressure. Fuel Pressure Relief Fuel Pump Insulator Replacement (LT1) Fuel Pump Insulator Replacement (LT4)
1	Fuel Feed Pipe Fastener CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Fuel Feed Pipe Procedure Disconnect the fuel feed pipe metal collar fittings. Metal Collar Quick Connect Fitting Service

Callout

Component Name

Preliminary Procedures

Fuel Feed Pipe Fastener

CAUTION:

Tighten
10 N.m (89 lb in)

Fuel Feed Pipe
Procedure
Disconnect the fuel feed pipe metal collar fittings. Metal Collar Quick Connect Fitting Service
