Engine Oil Temperature Gauge Sensor Replacement

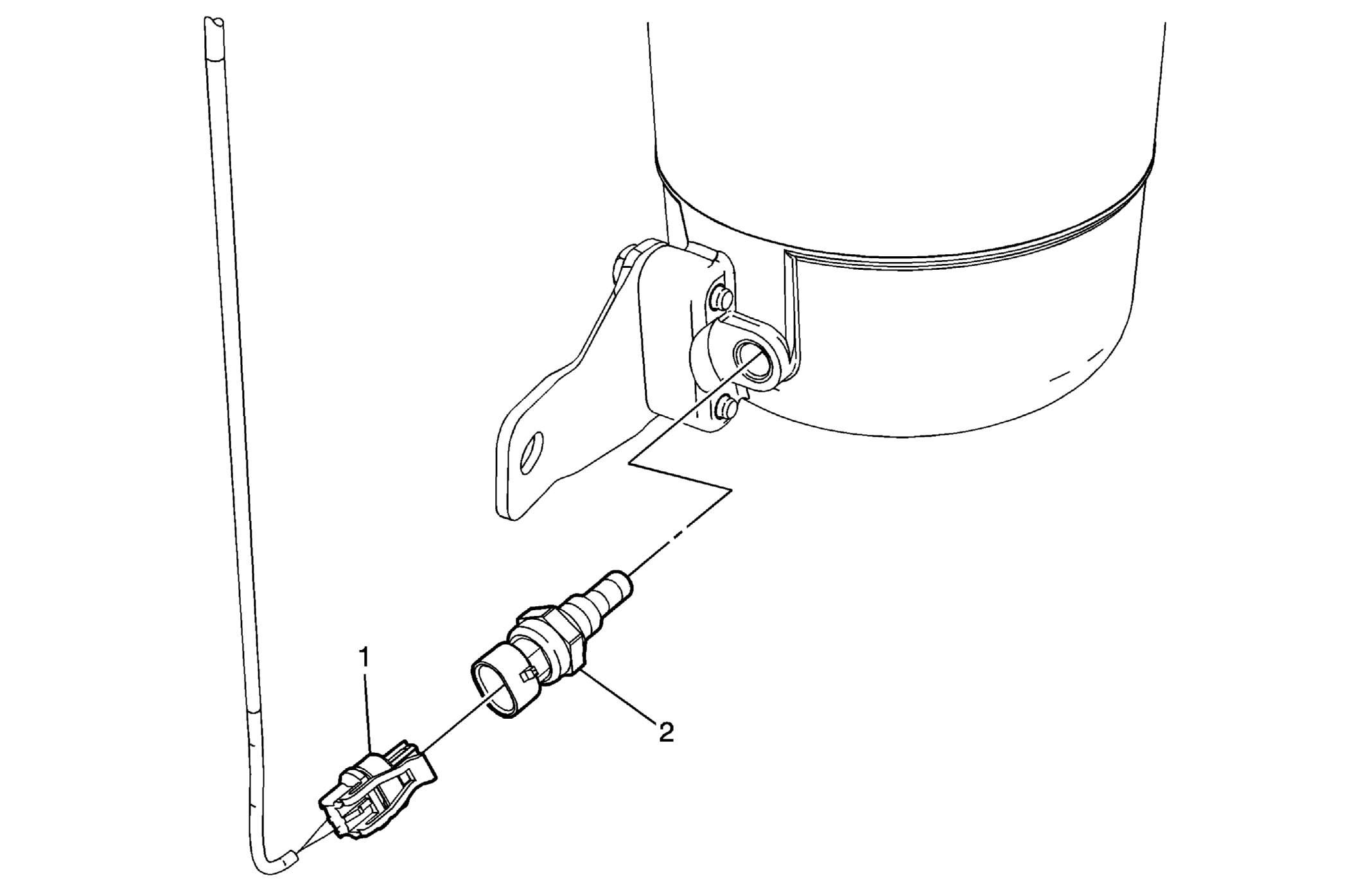

GM1705616Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the RF tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  3. Remove the RH front wheelhouse rear liner. Refer to Front Wheelhouse Liner Replacement (Without ZR1)Front Wheelhouse Liner Replacement (With ZR1) .
1 Oil Temperature Sensor Electrical Connector
2 Oil Temperature Sensor
CAUTION:

Refer to Fastener Caution .


Tighten
20 N.m (15 lb ft)
