Ignition and Start Switch Replacement

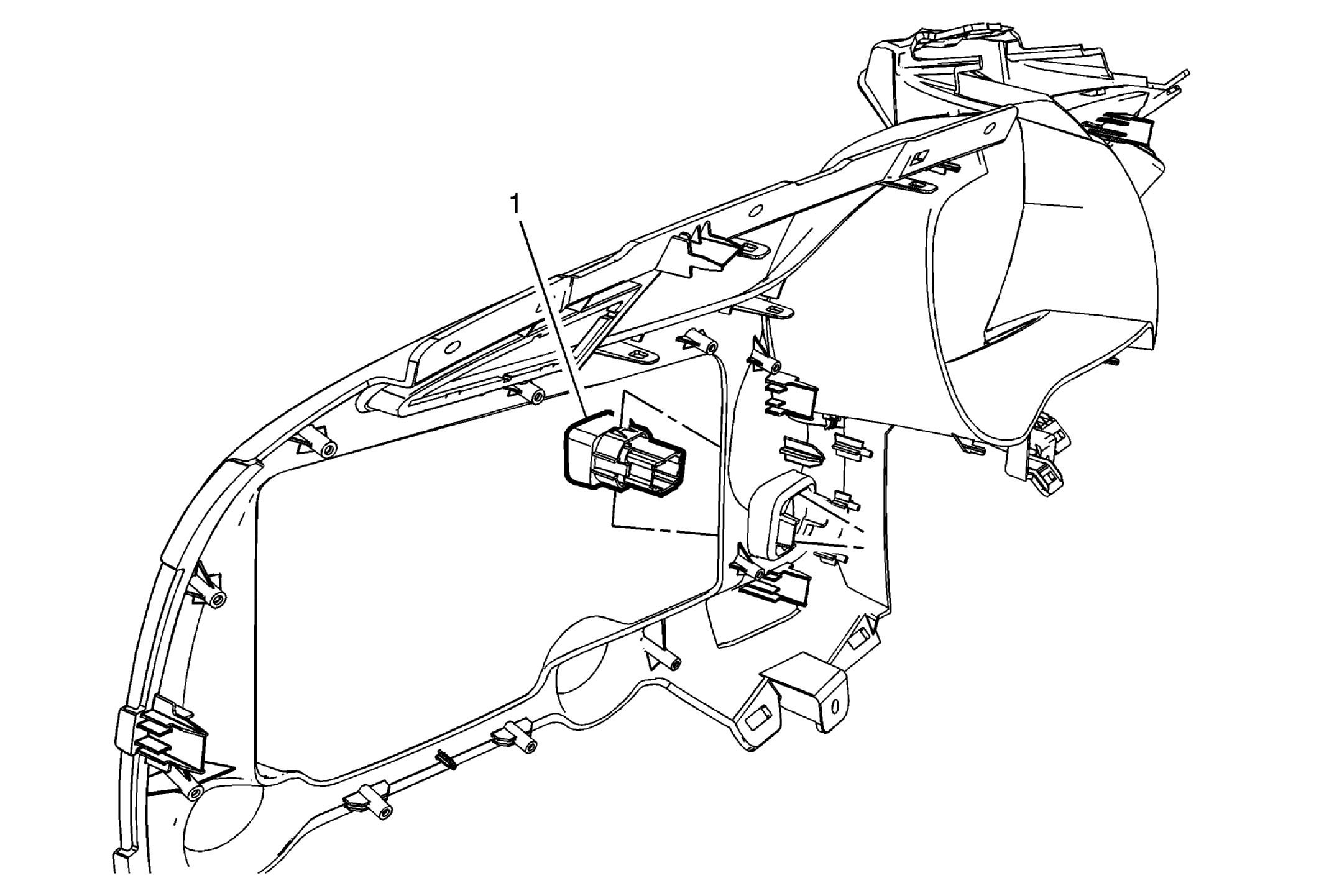

GM3358793Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the instrument panel carrier reinforcement. Refer to Instrument Panel Carrier Reinforcement Replacement .
1 Ignition and Start Switch

Procedure

  1. Disconnect electrical connection.
  2. Depress tabs on switch and remove from the panel.
