Heater Water Shutoff Valve Inlet Hose Replacement

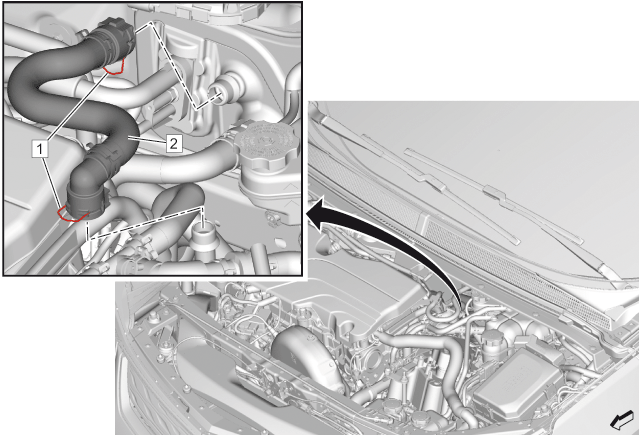

GM4090966Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Cooling System Draining and Filling
1 Heater Water Shutoff Valve Inlet Hose Clamp [2x]
Procedure
Heater Water Shutoff Valve Inlet Hose Clamp - Reposition [2x]
2 Heater Water Shutoff Valve Inlet Hose
NOTE:

Replace all corroded hose clamps and brackets.
