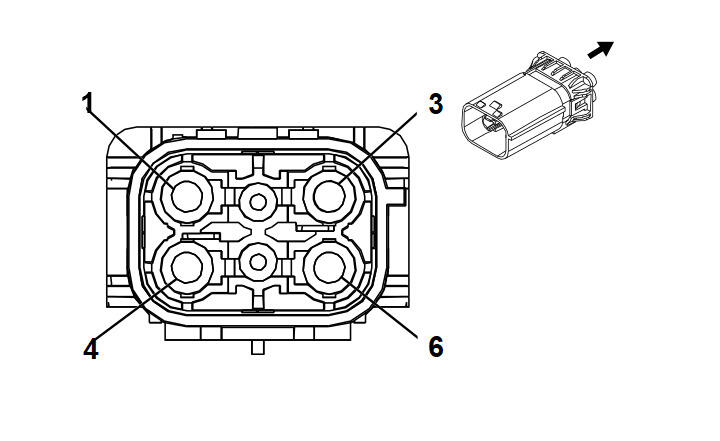

X98 Hybrid/EV Battery Charger Receptacle
WARNING: This page is about a different car, the 2017 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Battery Cable
- OEM Connector: 13990592
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way M 1.0, 2.4 HES Sealed (OG)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-7 (BN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
3 |
GN |
3952 |
Voltage AC Ground |
I |
- |
| 2 |
0.5 |
GY/GN |
3954 |
Control Pilot Signal 1 |
II |
- |
| 3 |
3 |
BU |
3837 |
Voltage AC Line 1 |
I |
- |
| 4 |
3 |
WH |
3838 |
Voltage AC Neutral Line 2 |
I |
- |
| 5 |
0.5 |
BU/YE |
3953 |
Proximity Status Signal 1 |
II |
- |
| 6 |
- |
- |
- |
Not Occupied |
- |
- |
