T2RR Antenna - Roof Rear X2
WARNING: This page is about a different car, the 2017 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.
|
|

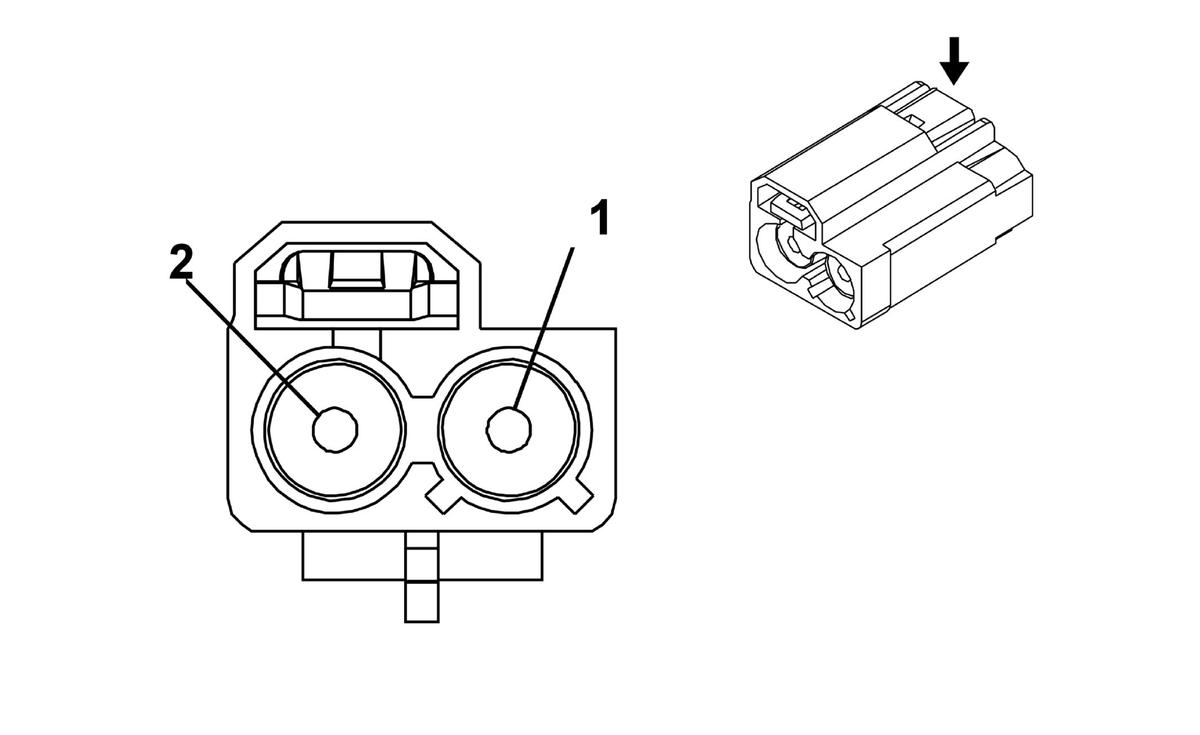

Connector Part Information
- Harness Type: Body
- OEM Connector: 13585485
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 2-Way F Coax Type (YE)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
Coax |
6130 |
Coaxial Antenna XM Signal |
I |
- |
| 2 |
- |
Coax |
6001 |
Antenna RF Signal |
I |
- |
