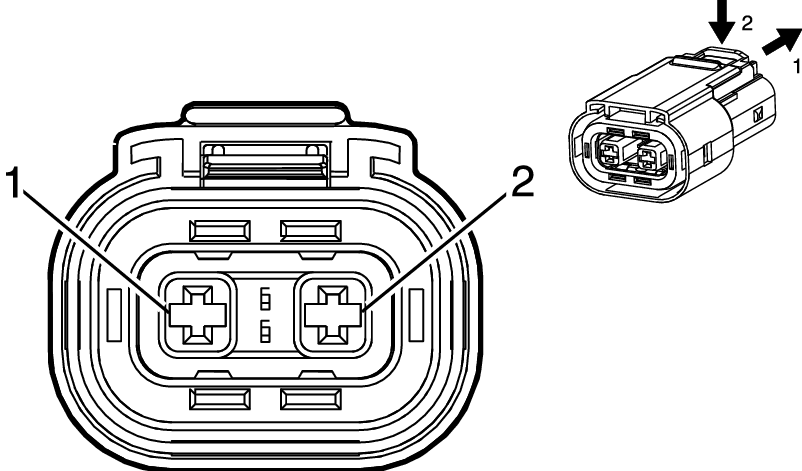

A28 Hybrid/EV Battery Contactor Assembly X6
WARNING: This page is about a different car, the 2017 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Battery Cable
- OEM Connector: 33184905
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F HVA280-2PHI Series, Sealed (OG)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-35 (VT) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
3 |
OG |
3834 |
High Voltage Battery 2 (+) |
I |
- |
| 2 |
3 |
OG/BK |
3833 |
High Voltage Battery 2 (-) |
I |
- |
