Rear Brake Hose Replacement

Courtesy of GENERAL MOTORS COMPANY

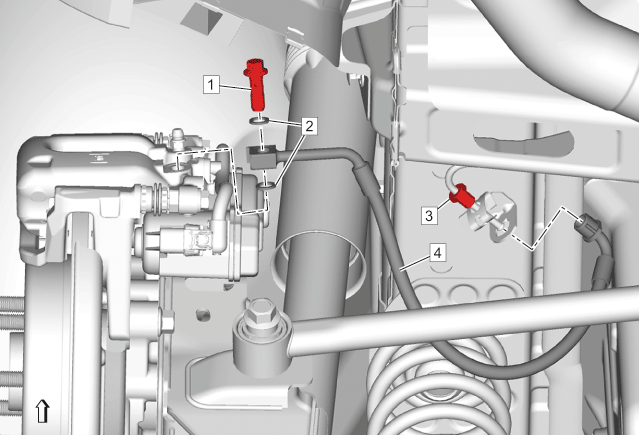

Callout	Component Name
WARNING: Brake Fluid Irritant Warning WARNING: Brake Fluid Effects on Paint and Electrical Components Caution Preliminary Procedure Tire and Wheel Removal and Installation
1	Brake Hose Fitting Bolt CAUTION: Fastener Caution Tighten 40 N.m (30 lb ft)
2	Brake Hose Fitting Gaskets [2x] Procedure DISCARD the brake hose fitting gaskets.
3	Brake Pipe Fitting Tighten 20 N.m (15 lb ft)
4	Rear Brake Hose Procedure Hydraulic Brake System Bleeding
