Installation Procedure
- Remove the caps from brake pipe fitting and the brake hose.
- CAUTION:
Refer to Fastener Caution .

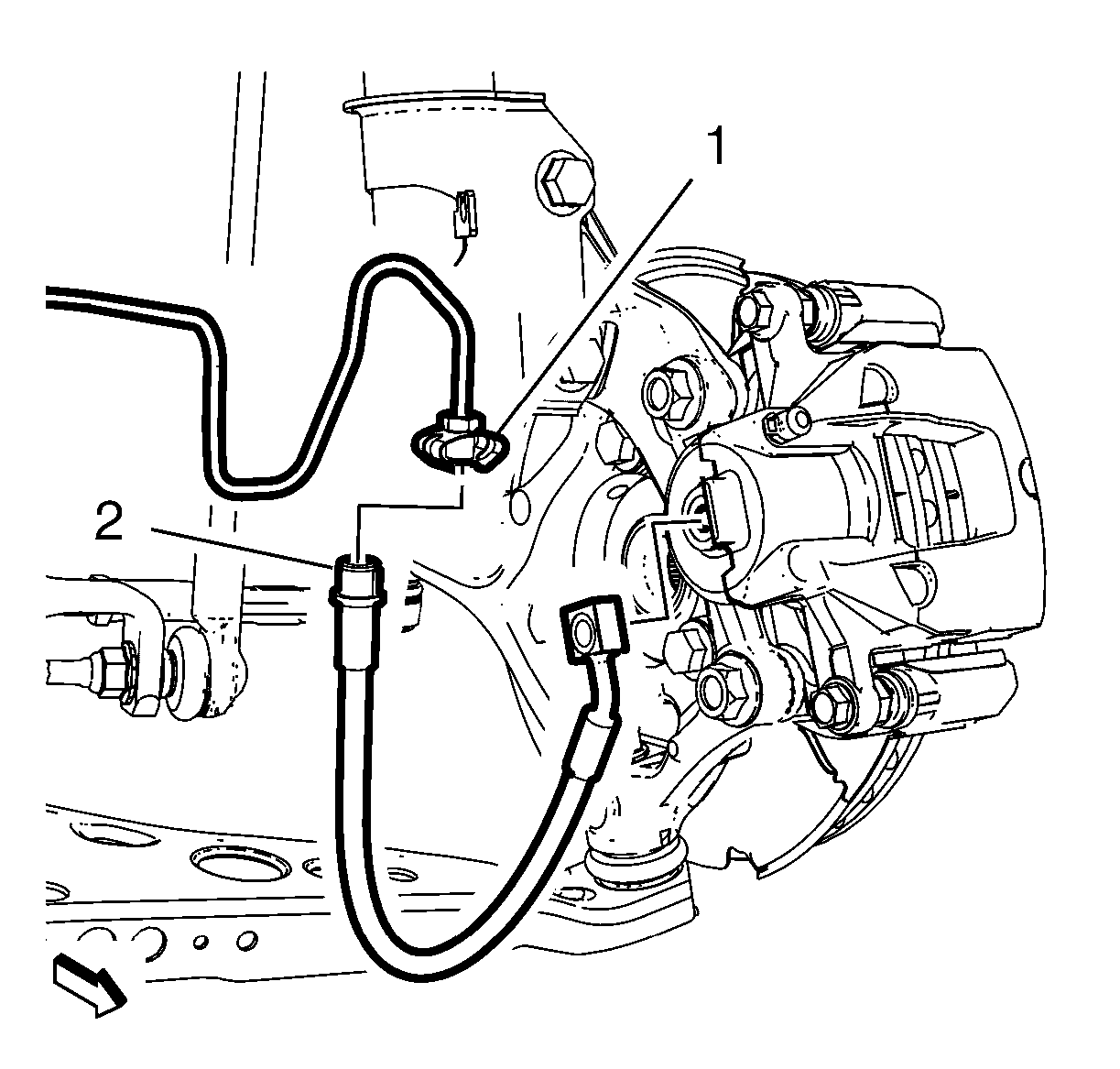

Front Brake Hose (2) @ Front Brake Pipe Fitting (1) - Install and tighten 20 N.m (15 lb ft)
- Remove the caps from the brake hose and the brake caliper inlet port.
- CAUTION:
Refer to Fastener Caution .

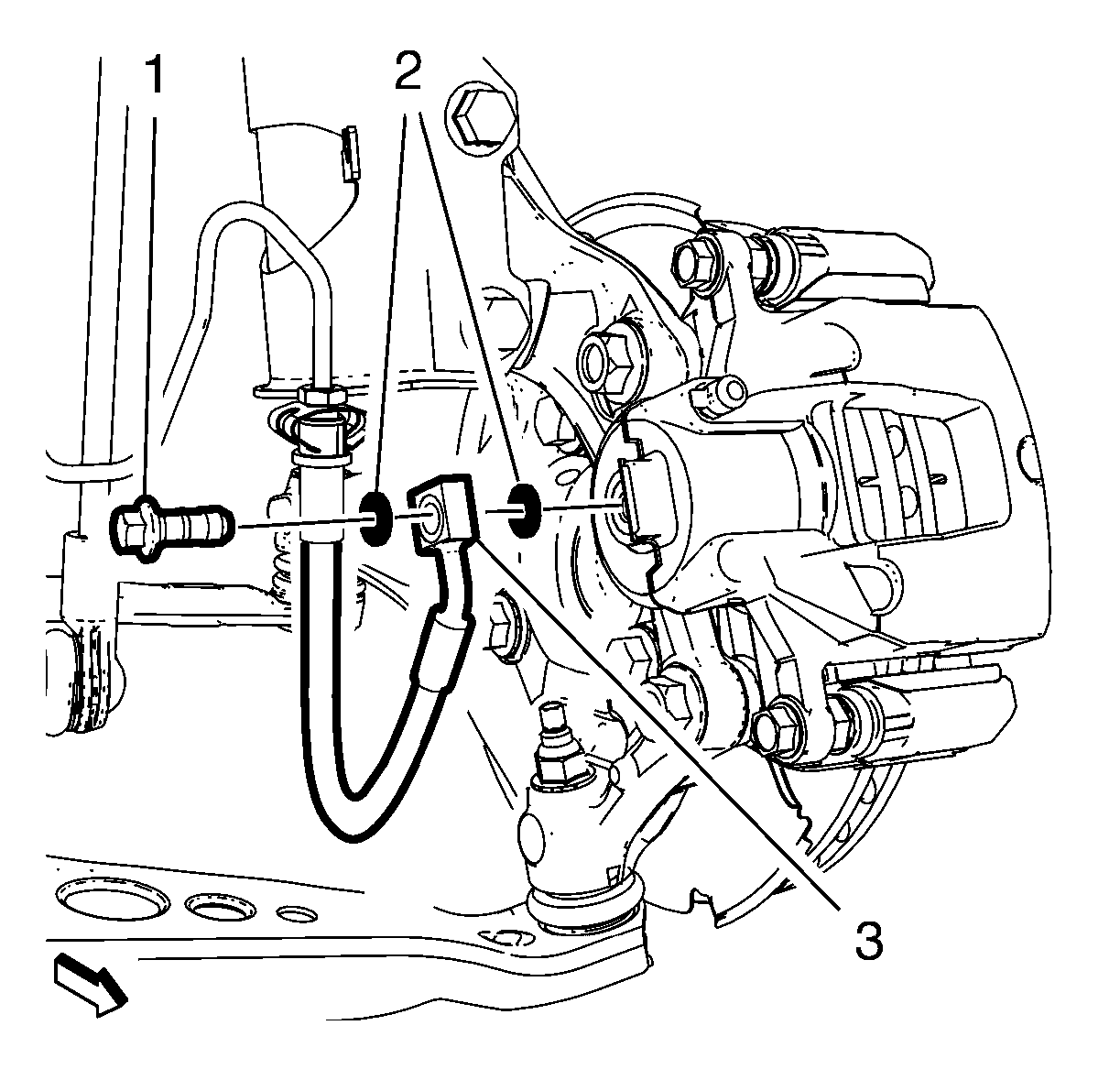

Install NEW brake hose fitting gaskets. (2) [2x]
- Front Brake Hose (3) @ Brake Hose Fitting Bolt (1) - Install and tighten 40 N.m (30 lb ft)
- Hydraulic Brake System Bleeding
- Tire and Wheel Removal and Installation - Install
