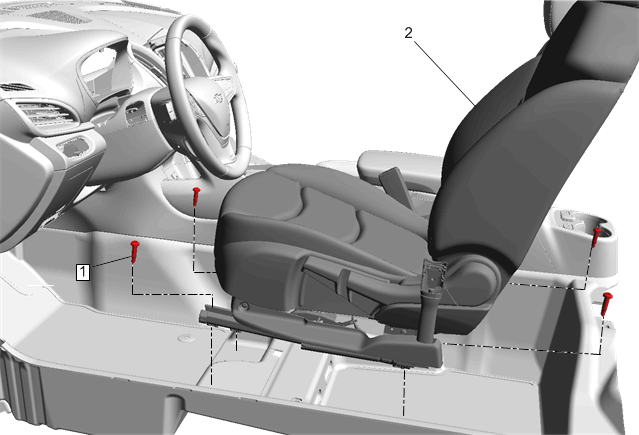

Driver or Passenger Seat Removal and Installation

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures SIR Disabling and Enabling Disconnect the seat belt from the tensioner. Front Seat Belt Retractor Replacement
1	Driver or Passenger Seat Bolt [4x] CAUTION: Fastener Caution . Procedure Adjust the seat to the full forward position to gain access to the rear bolts. Tighten 45 N.m (33 lb ft)
2	Driver or Passenger Seat Procedure Disconnect the electrical connector. With the aid of an assistant, remove the front seat.

Callout

Component Name

WARNING:

Preliminary Procedures

Driver or Passenger Seat Bolt [4x]

CAUTION:

Procedure
Adjust the seat to the full forward position to gain access to the rear bolts.
Tighten
45 N.m (33 lb ft)

Driver or Passenger Seat

Procedure
