Rear Wheelhouse Liner Replacement

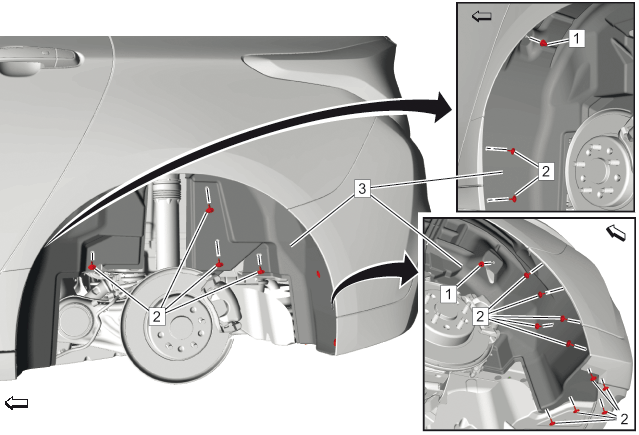

GM4091153
Callout Component Name

Preliminary Procedures

  1. Tire and Wheel Removal and Installation
  2. Rear Tire Front Air Deflector Replacement
1 Rear Wheelhouse Panel Liner Nut [2x]
Tighten
2.5 N.m (22 lb in)
2 Rear Wheelhouse Liner Bolt[16x]
CAUTION:

Fastener Caution


Tighten
2.5 N.m (22 lb in)
3 Rear Wheelhouse Liner
