Rear Side Door Sill Trim Plate Replacement

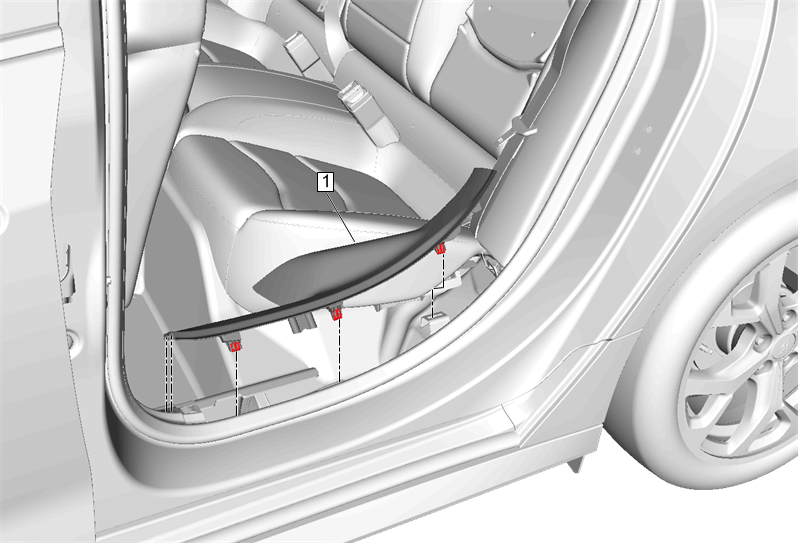

GM4084416
Callout Component Name
1 Rear Side Door Sill Trim Plate

Procedure

  1. Starting at the front of the sill trim plate, pull upward at the B-Pillar joint to disengage sill garnish molding.
  2. Work your way rearward disengaging all of the garnish molding clips then pull forward to disengage from the C-Pillar lower.
