Front Side Door Sill Trim Plate Replacement

GM4083628

Callout

Component Name

Preliminary Procedure
Instrument Panel Outer Trim Cover Replacement

1

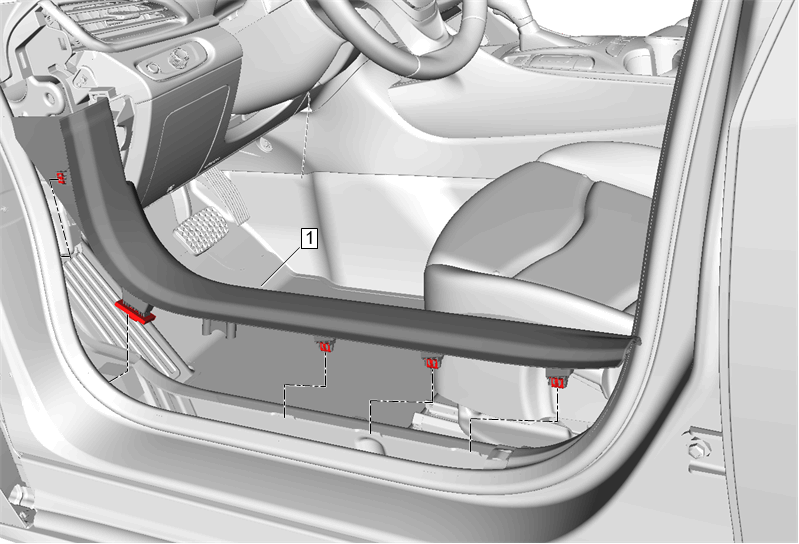

Front Side Door Sill Trim Plate

Procedure

Starting at the rear of the garnish molding, pull upward at the B-Pillar joint to disengage garnish molding.
Work your way forward disengaging all of the garnish molding clips then pull rearward to disengage the 2 clips on the forward vertical wall.
Reposition the front floor panel carpet as needed.
