Center Pillar Upper Trim Panel Replacement

Preliminary Procedures

1. SIR Disabling and Enabling
2. Remove the driver or passenger seat belt anchor plate tensioner cover and fastener. Front Seat Belt Retractor Replacement
3. Move the seat to the full forward position.
4. Center Pillar Lower Trim Panel Replacement

Procedure

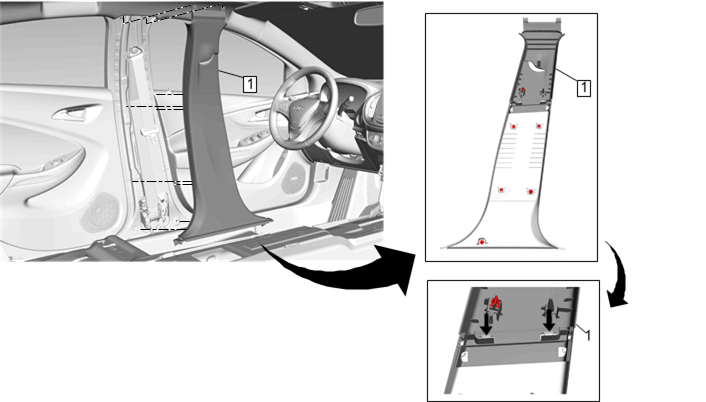

1. Pull the trim panel toward the inside of the vehicle to disengage the retainers and unhook the trim panel from the headliner.
2. When replacing the center pillar upper trim panel, feed the seat belt through the panel.
