Front Side Door Armrest Bracket Replacement

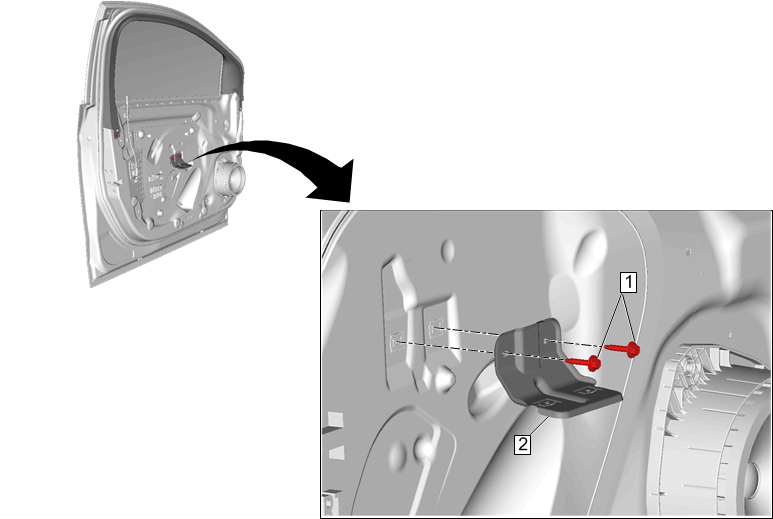

GM4071555
Callout Component Name
Preliminary Procedure
Front Side Door Trim Replacement
1 Front Side Door Armrest Bracket Fastener [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Front Side Door Armrest Bracket
