Hood Rear Outer Seal Replacement

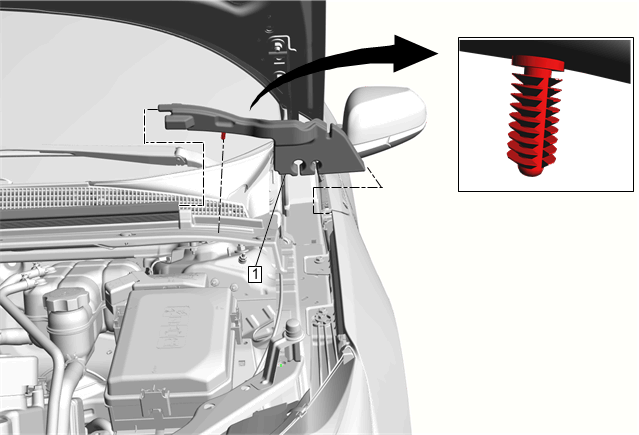

GM4142992
Callout Component Name
1 Hood Rear Outer Seal
Procedure
Using a trim type tool, release the single retainer and tip the seal forward to release it from under the front fender.
