Intermediate Steering Shaft Replacement (NJ1)

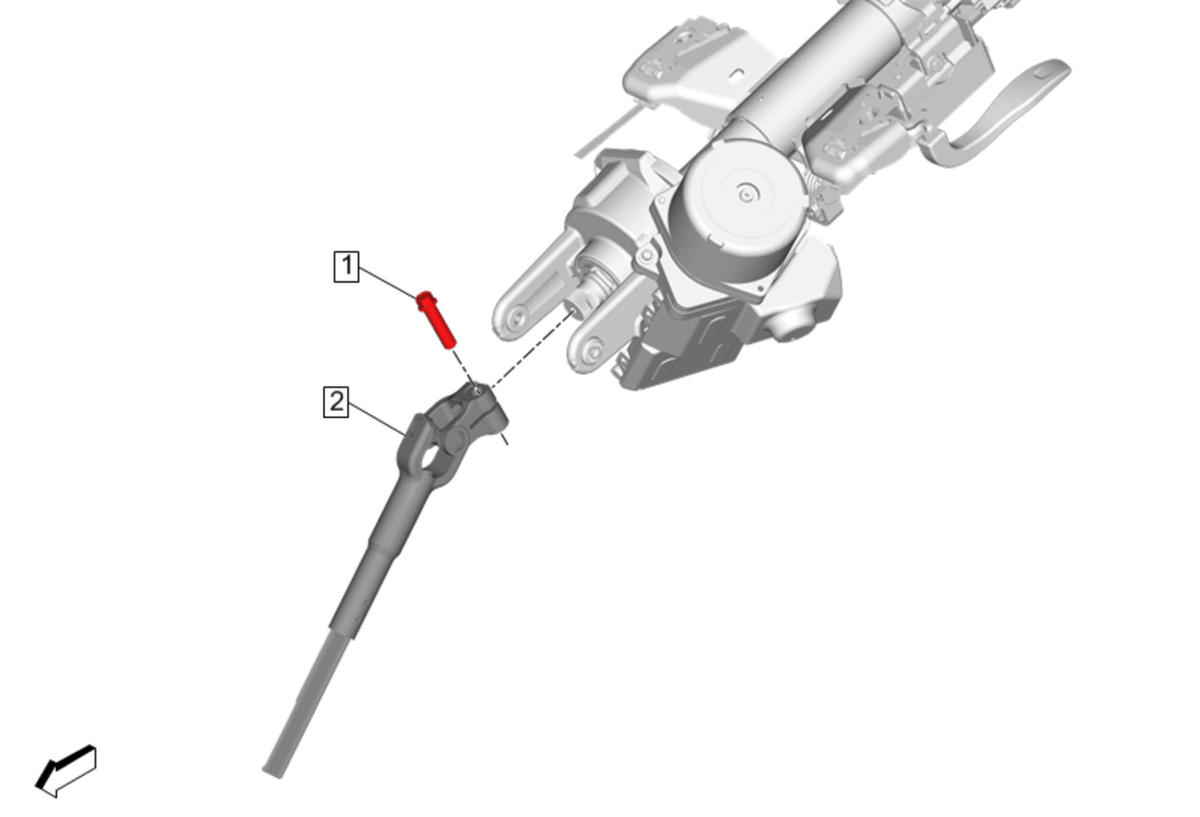

Callout	Component Name
Preliminary Procedure  Steering Column Replacement (Buick, Mexico, NJ1, With BTM, With N06) Steering Column Replacement (Buick, Canada/United States, NJ1, With BTM, Without N06) Steering Column Replacement (Chevrolet, Mexico, NJ1, With BTM, With N06) Steering Column Replacement (Chevrolet, Canada/United States, NJ1, With BTM, Without N06) Steering Column Replacement (Chevrolet, Canada/United States, NJ1, Without BTM, Without N06) Steering Column Replacement (Chevrolet, Mexico, NJ1, Without BTM, Without N06) Steering Column Replacement (Mexico, N40)
1	Intermediate Steering Shaft Upper Bolt CAUTION: Refer to Fastener Caution . Tighten  49 N.m (36 lb ft)
2	Intermediate Steering Shaft Procedure  Center the steering angle sensor. Steering Wheel Angle Sensor Centering
