Heater Water Auxiliary Pump Inlet Hose Replacement (LE2)

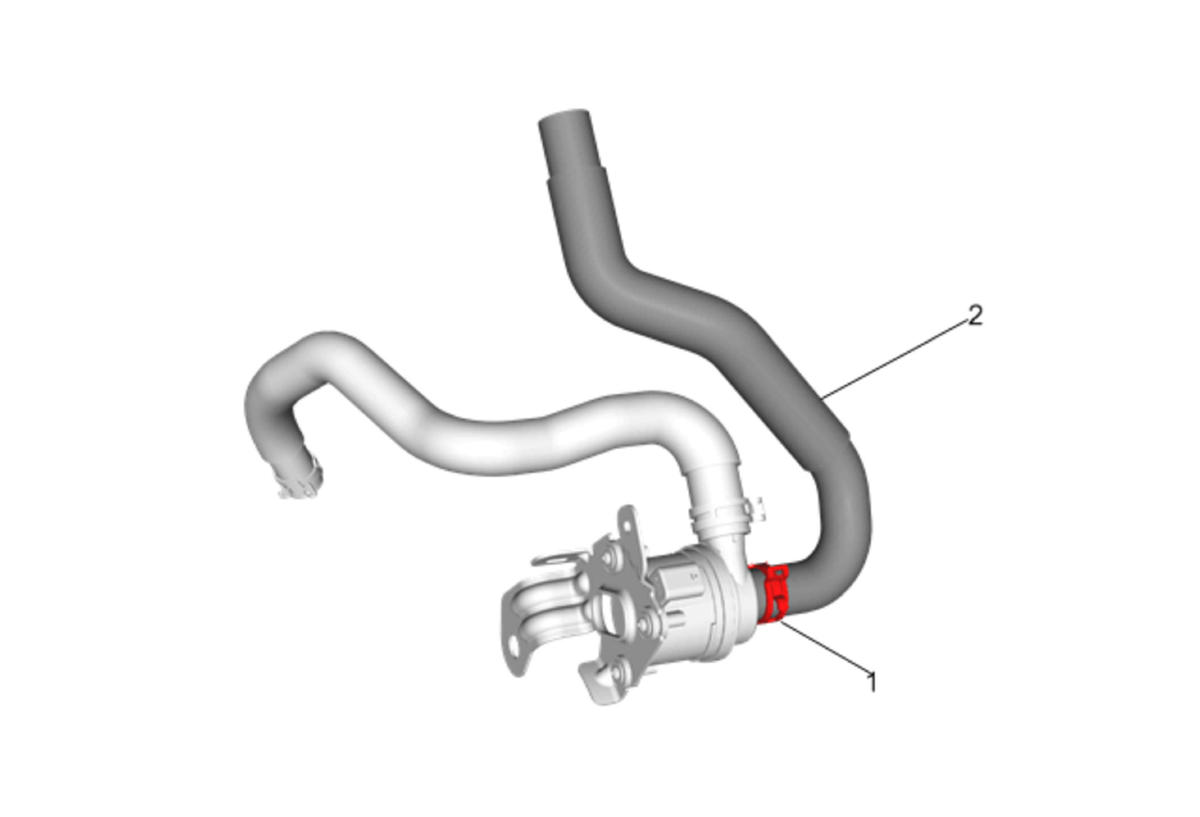

GM4260695
Callout Component Name

Preliminary Procedures

  1. Auxiliary Water Pump Replacement (LE2)
1 Heater Water Auxiliary Pump Inlet Hose Clamp
Procedure
Hose Clamp Replacement Guidelines - Spring Type
2 Heater Water Auxiliary Pump Inlet Hose
Procedure
  1. Fill the cooling system to the proper level. Cooling System Draining and Filling
  2. Inspect for coolant leaks.
