Heater Outlet Hose Replacement (LE2)

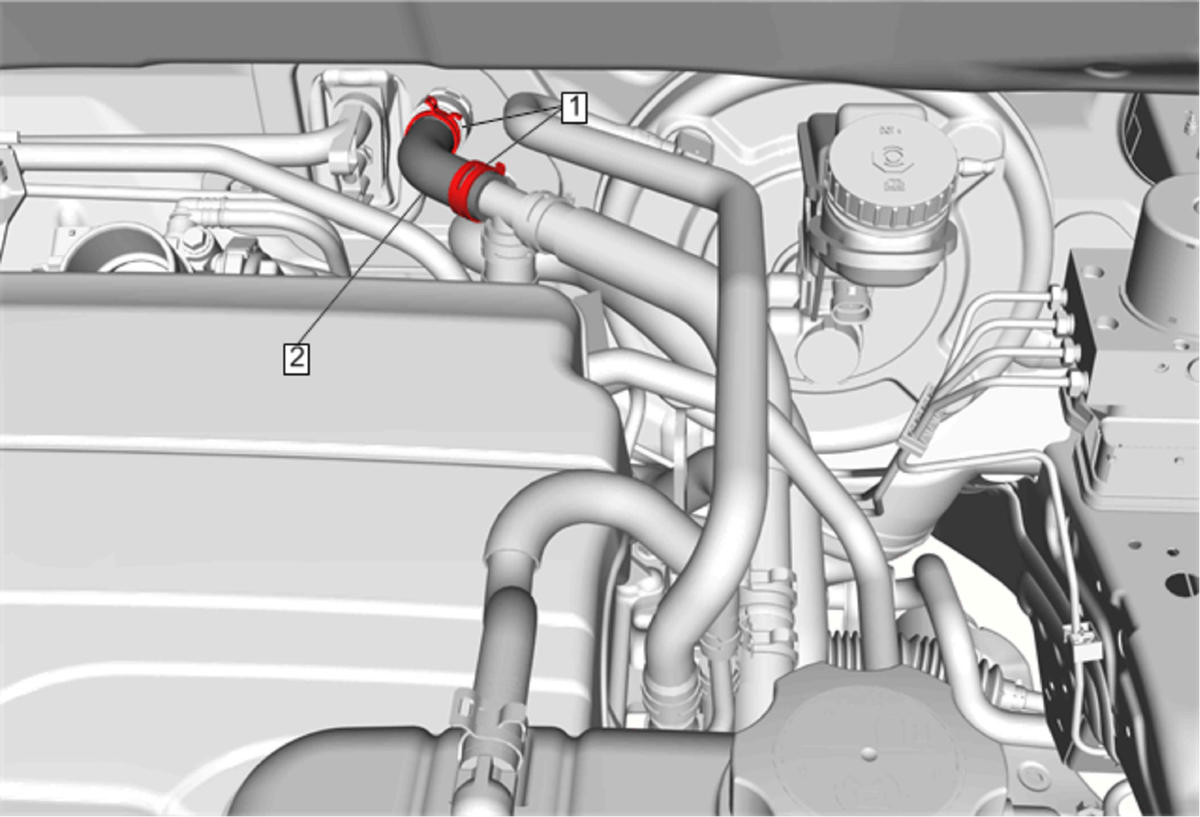

GM4260581
Callout Component Name

Preliminary Procedures

  1. Cooling System Draining and Filling
  2. Charge Air Cooler Outlet Air Hose@Throttle Body - Reposition away - Charge Air Cooler Outlet Air Hose Replacement
1 Heater Outlet Hose Clamp
Procedure
Reposition the heater outlet hose clamps using GE-47622  Hose Clamp Pliers.
Special Tools
GE-47622  Hose Clamp Pliers
2 Heater Outlet Hose

Procedures

  1. Heater Outlet Hose - Remove
  2. Fill the cooling system to the proper level. Cooling System Draining and Filling
  3. Start the engine and check for coolant leaks.
