Heater Outlet Hose Replacement (2H0)

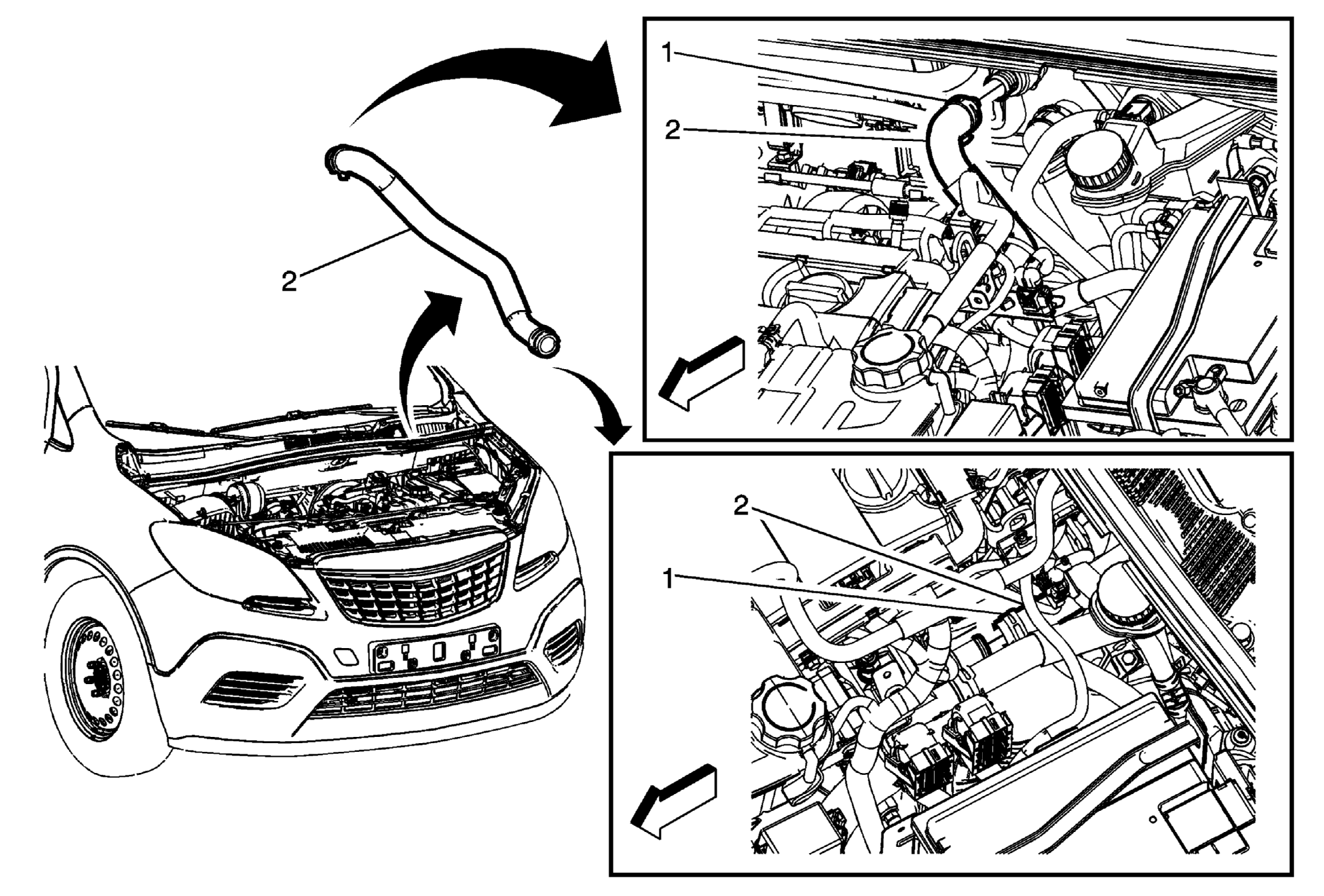

GM2811642
Callout Component Name
Preliminary Procedures
Drain the engine coolant. Refer to Cooling System Draining and Filling .
1 Heater Outlet Hose Clamp (Qty: 2)
Special Tools
BO-38185  Hose Clamp Pliers
For equivalent regional tools, refer to Special Tools .
2 Heater Outlet Hose
