Heater Inlet Hose Replacement (LE2)

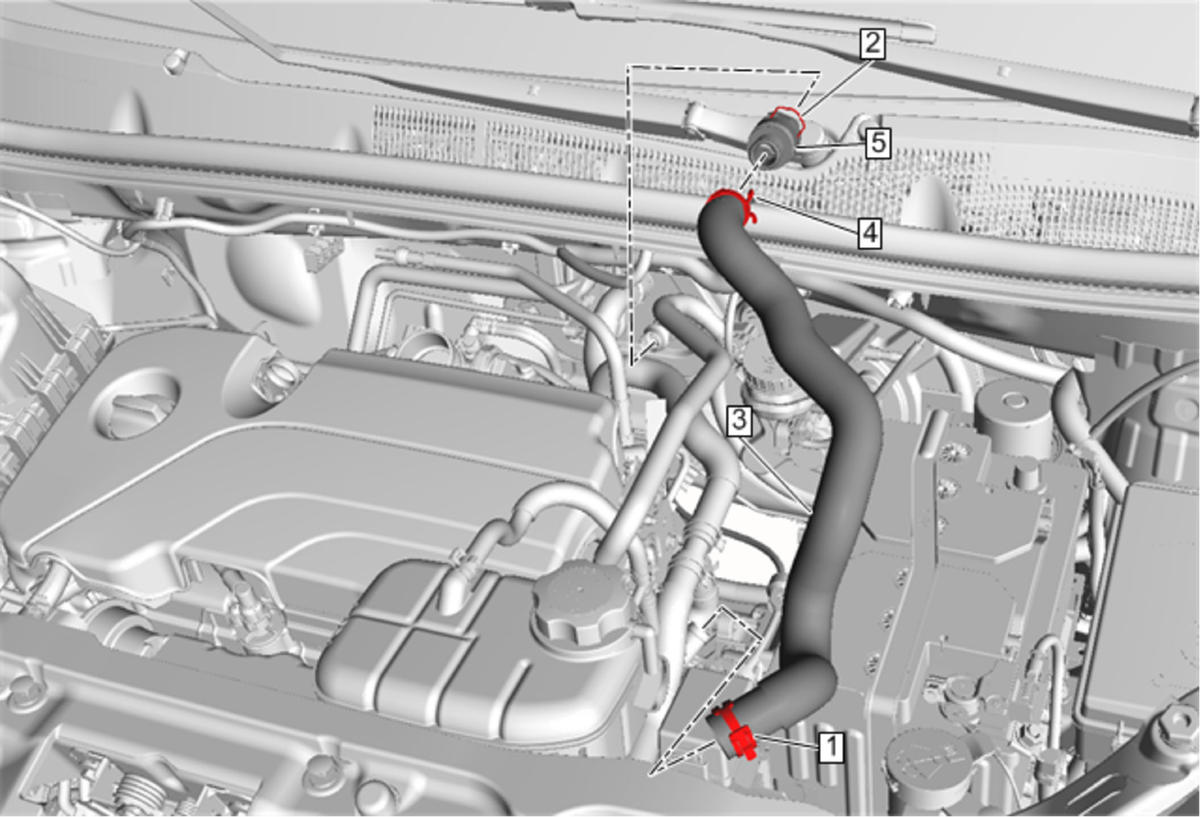

Callout	Component Name
Preliminary Procedures Cooling System Draining and Filling . Charge Air Cooler Inlet Air Hose Replacement Engine Control Module Replacement
1	Heater Inlet Hose Clamp Special Tools Use the GE-47622 Hose Clamp Pliers For equivalent regional tools, refer to Special Tools .
2	Heater Inlet Hose Retainer
3	Heater Inlet Hose
4	Heater Inlet Hose Clamp Special Tools Use the GE-47622 Hose Clamp Pliers For equivalent regional tools, refer to Special Tools .
5	Heater Inlet Hose Quick Connect Procedure Fill the engine coolant to the proper level. Cooling System Draining and Filling Check the cooling system for leaks.
