Heater Inlet Hose Replacement (2H0)

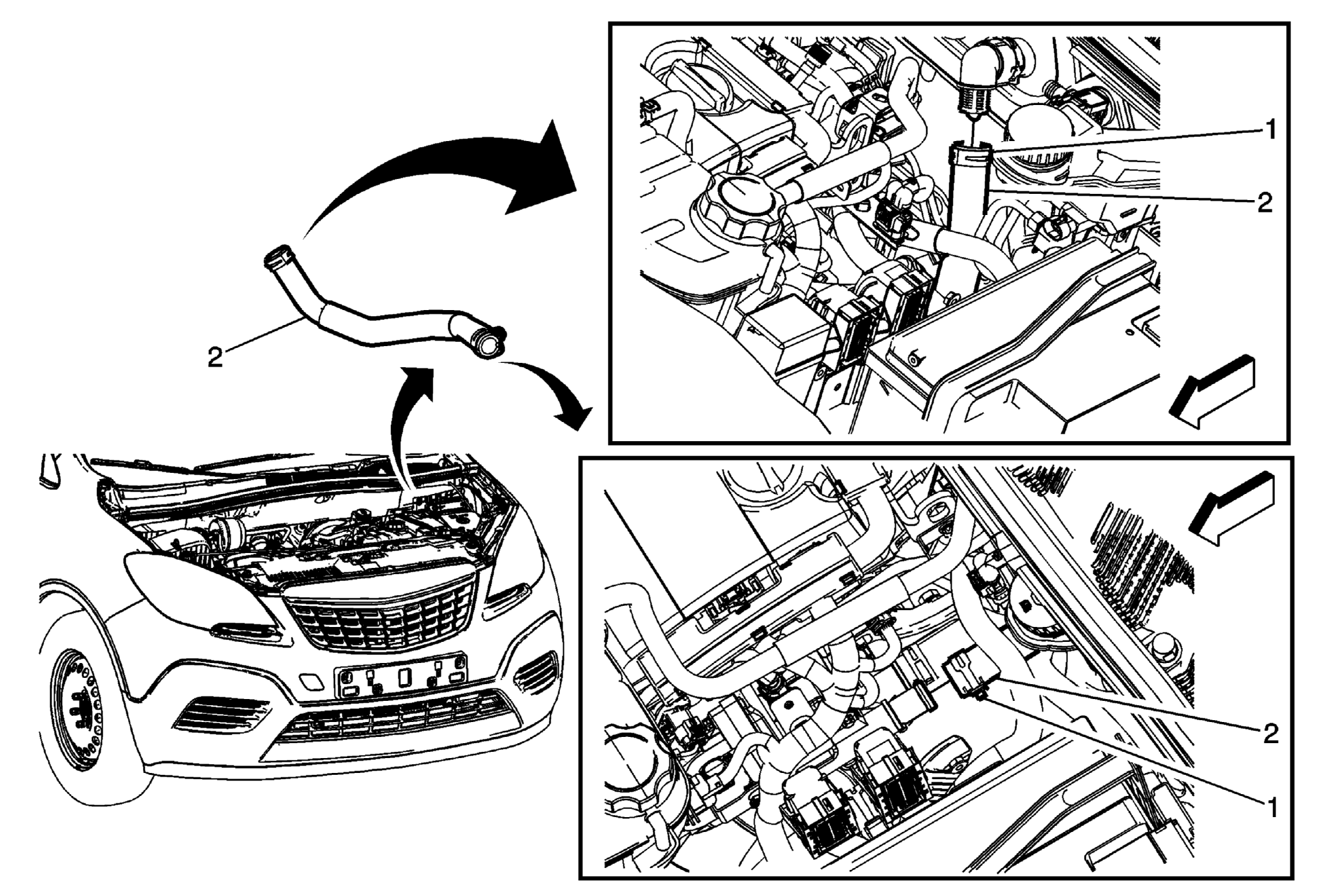

GM2811641
Callout Component Name
Preliminary Procedures
Drain the engine coolant. Cooling System Draining and Filling .
1 Heater Inlet Hose Clamp (Qty: 2)
Special Tools
BO-38185  Hose Clamp Pliers
For equivalent regional tools Special Tools .
2 Heater Inlet Hose
