Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement (2H0)
| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|

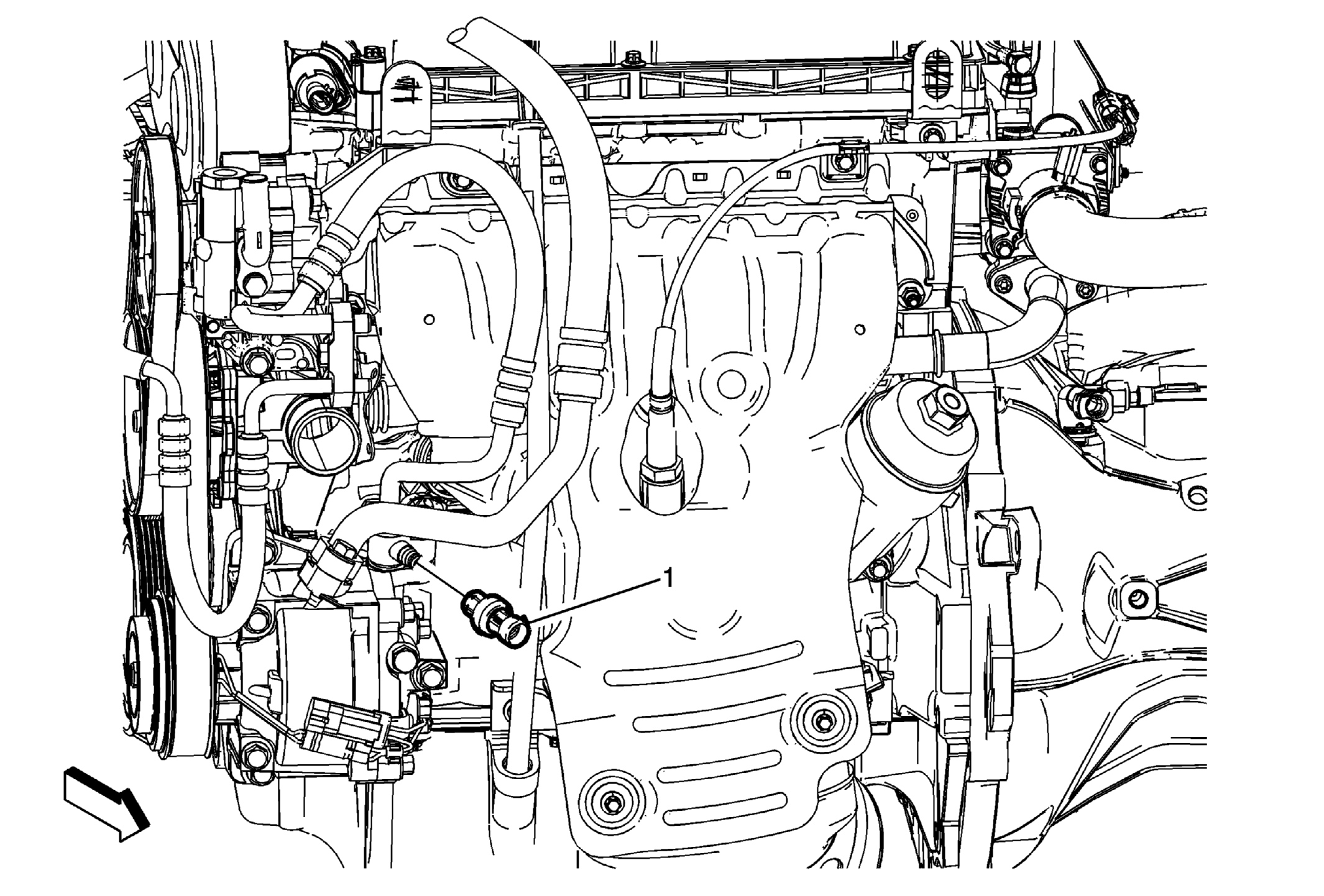

| 1 | Air Conditioning Refrigerant Pressure Sensor
CAUTION:
Refer to Fastener Caution . Procedure Disconnect the electrical connector from the pressure sensor.
NOTE:
Remove and discard the O-ring and replace with NEW only. Refer to Air Conditioning O-Ring Seal Replacement . Tighten 6 N.m (53 lb in) |
