Removal Procedure

WARNING: This page is about a different car, the 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
  1. Vacuum Pump Assembly Replacement  - Remove
  2. Engine Control Module Replacement  - Remove

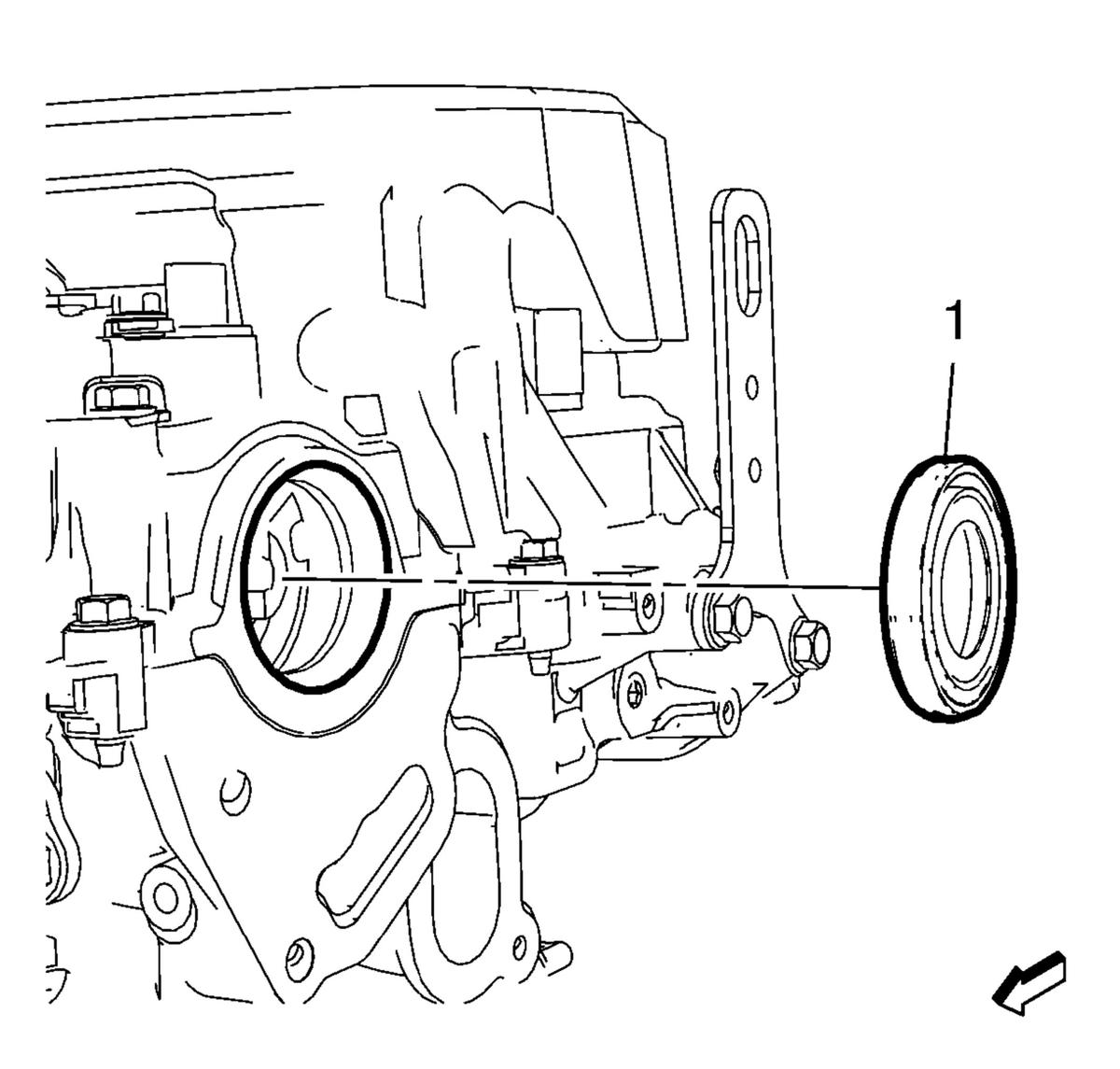

  3. GM3687000

    Remove and DISCARD the vacuum pump seal (1), using a suitable tool.
