Throttle Body Assembly Replacement

WARNING: This page is about a different car, the 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

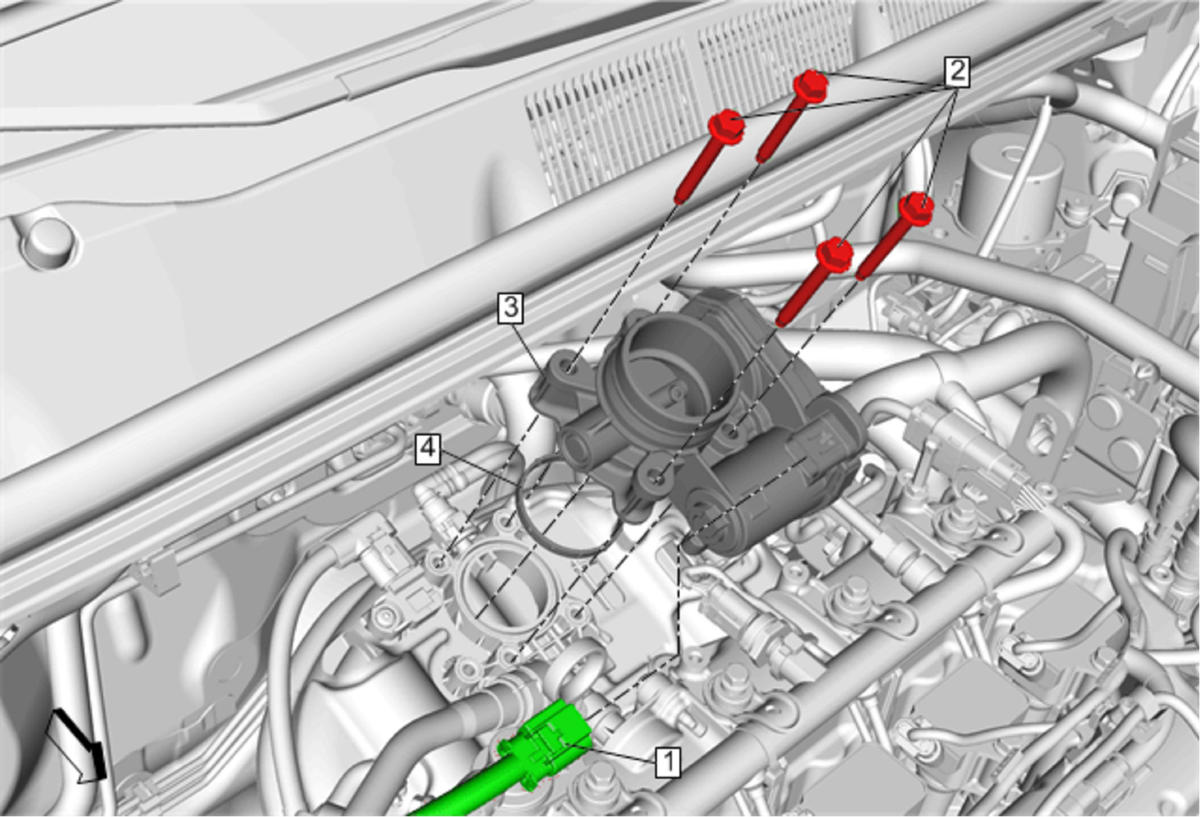

Callout	Component Name
Preliminary Procedure Charge Air Cooler Outlet Air Hose Replacement
1	Electrical Connector
2	Throttle Body Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
3	Throttle Body Procedure Perform the intake system learned values reset. Intake System Learned Values Reset Perform the throttle body idle air flow compensation reset. Throttle Body Idle Air Flow Compensation Reset
4	Throttle Body Gasket Procedure Install a NEW gasket.
