Fuel Tank Protector Replacement (Right Side FWD)
WARNING: This page is about a different car, the 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

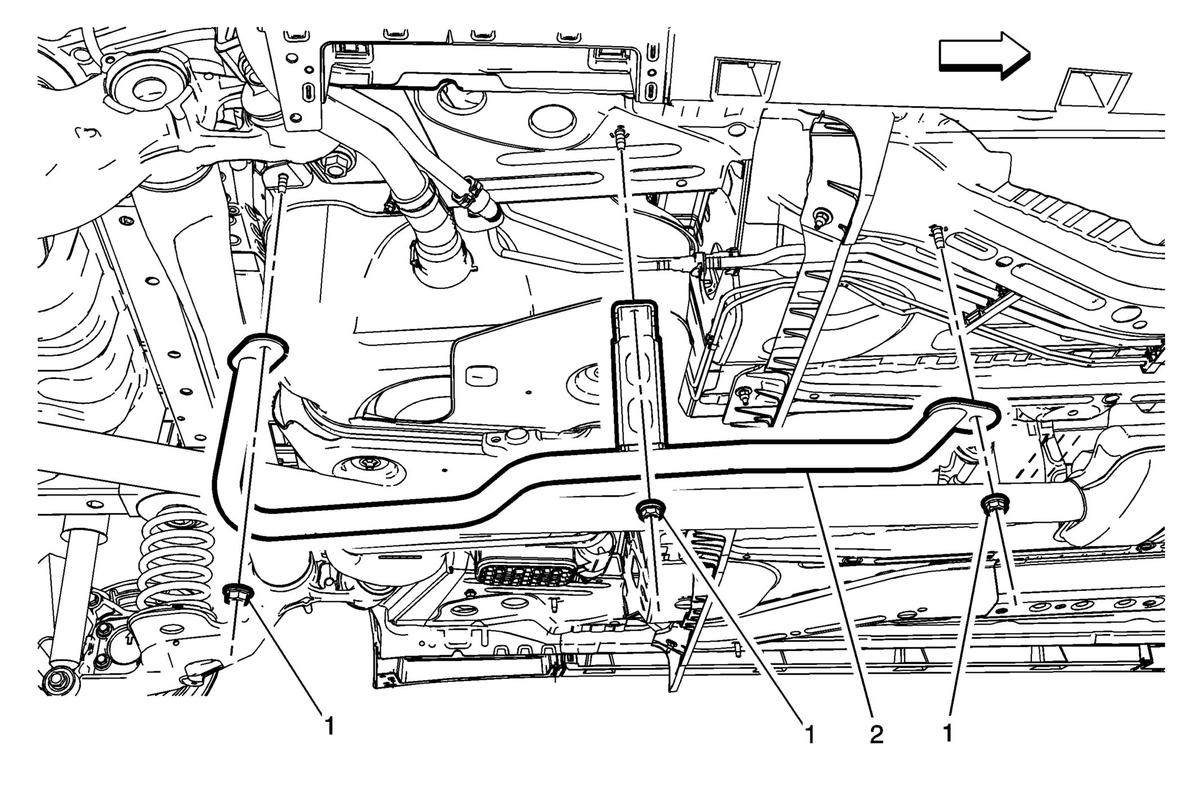

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle |
|
| 1 | Fuel Tank Protector Fasteners (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 22 N.m (16 lb ft) |
| 2 | Fuel Tank Protector Procedure Remove the front right parking brake cable bracket nut and position the parking brake rear cable aside. Parking Brake Rear Cable Replacement (Disc Brake)Parking Brake Rear Cable Replacement (Drum Brake) |
