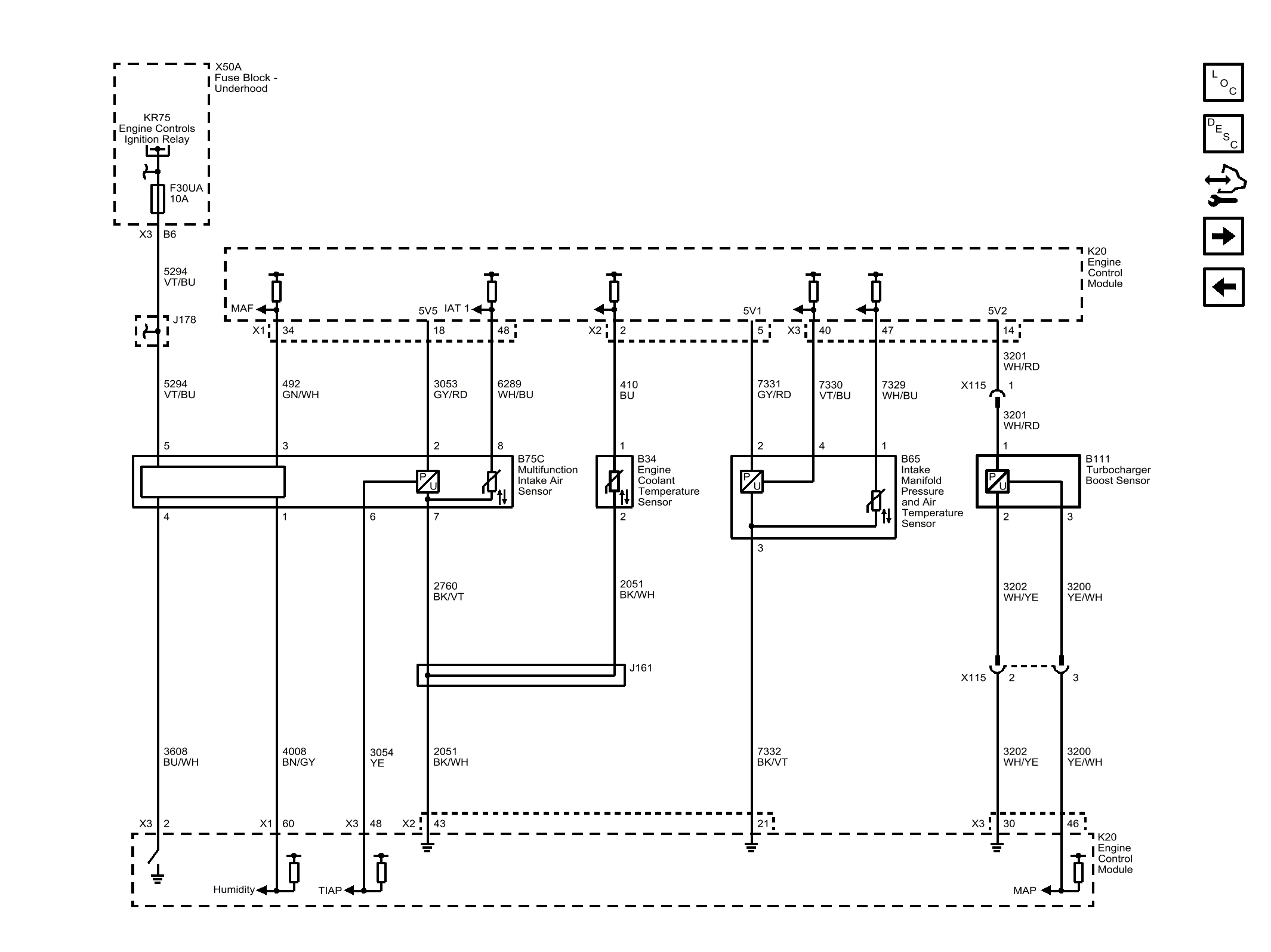

Intake, Manifold, and Engine Coolant Sensors (Buick with LE2)

WARNING: This page is about a different car, the 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
GM4704416
