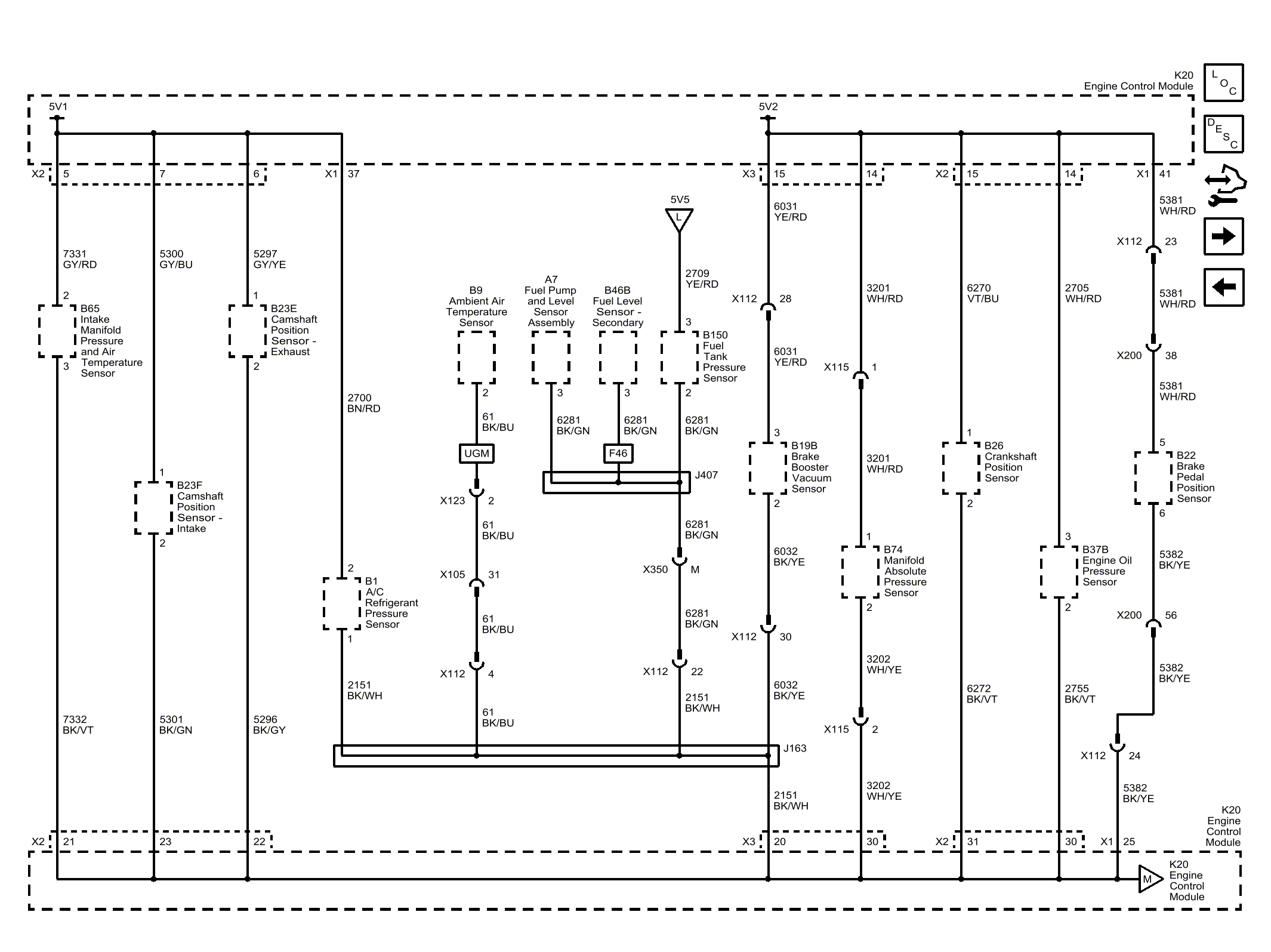

5V1, 5V2, and Low Reference Bus (Buick with LE2, page 1 of 2)

WARNING: This page is about a different car, the 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
GM4704413
