Engine Oil Pressure Control Solenoid Valve (Buick with LE2)

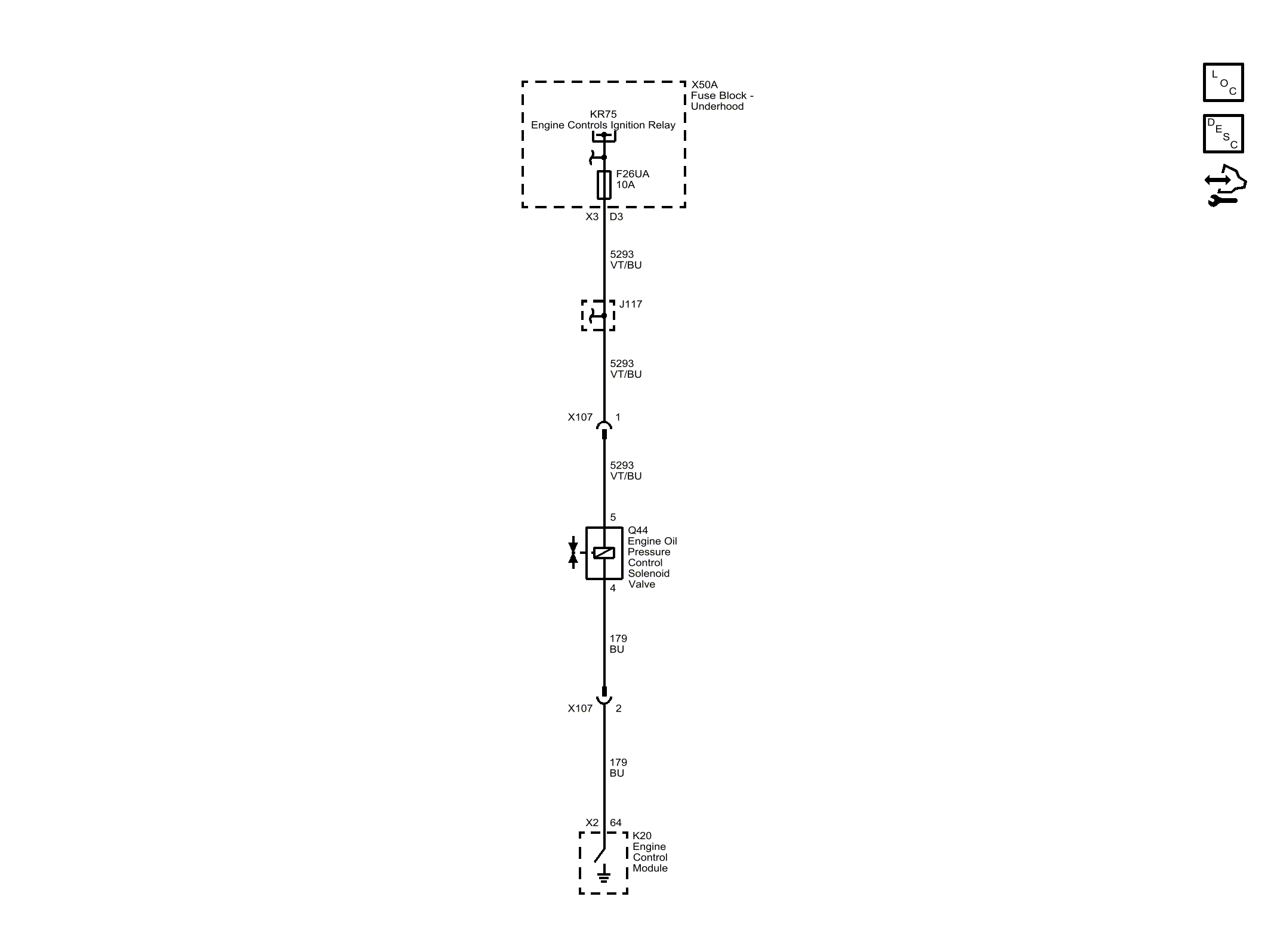

Engine Oil Pressure Control Solenoid Valve (Buick with LE2)
WARNING:
This page is about a different car, the 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
