Installation Procedure

WARNING: This page is about a different car, the 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

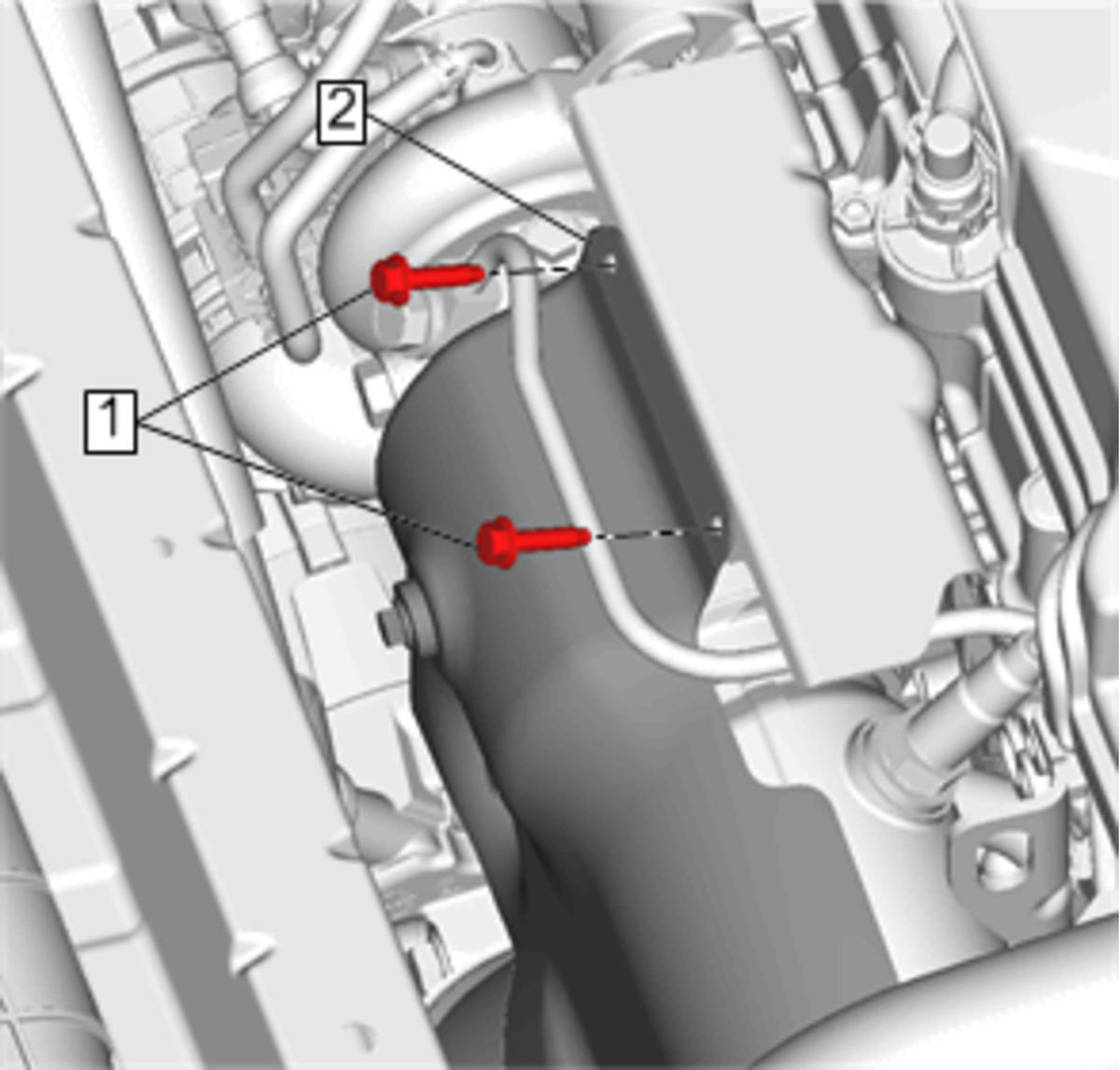

  1. GM3978871
    CAUTION:

    Refer to Fastener Caution .

    Turbocharger Heat Shield(2) - Install

  2. Turbocharger Heat Shield Fastener(1) - Install and tighten[2x]10 N.m (89 lb in)

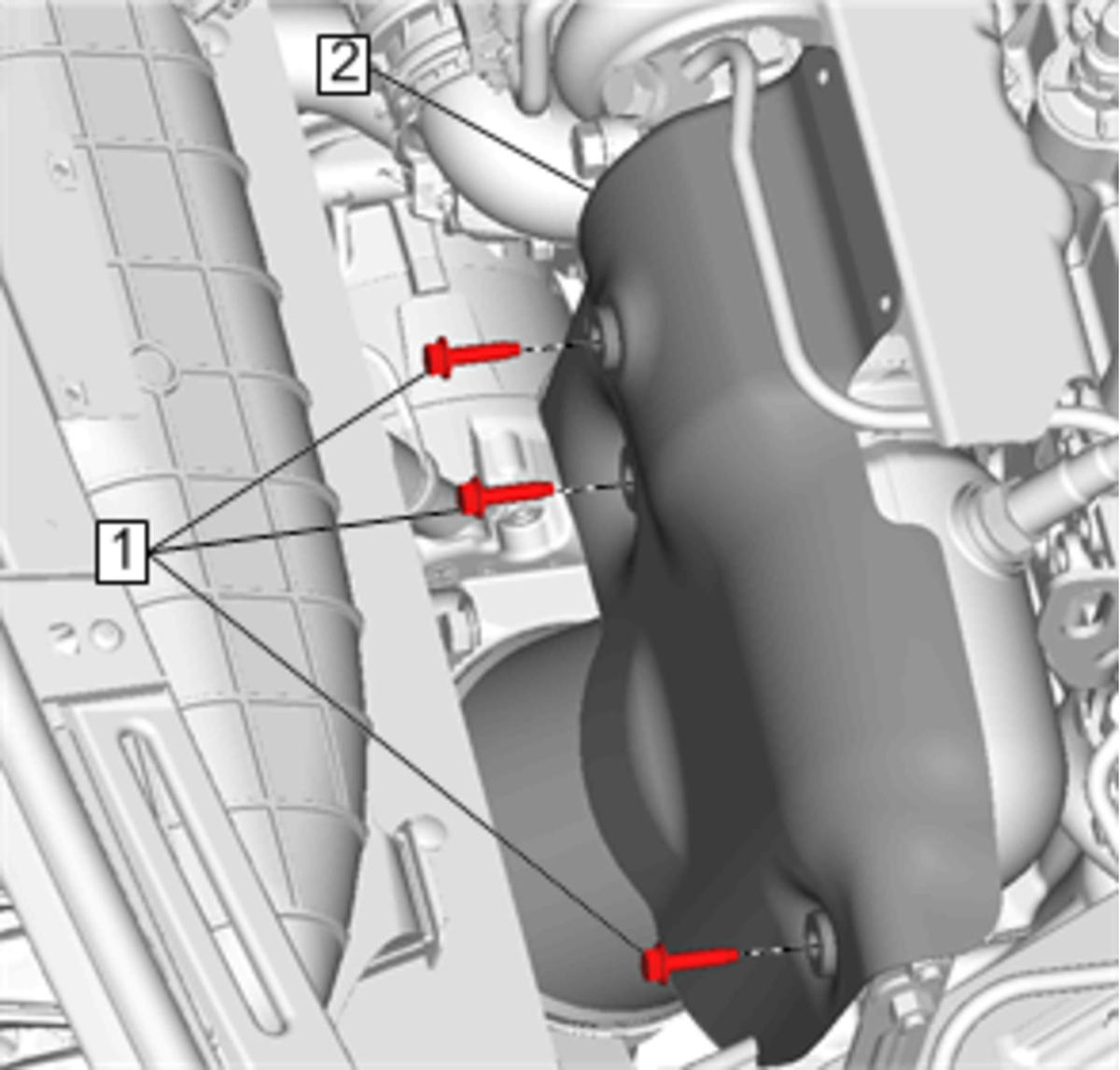

  3. GM3978878

    Turbocharger Heat Shield Fastener(1) - Install and tighten[3x] 10 N.m (89 lb in)

  4. Radiator Surge Tank Replacement (LUV, 2H0)Radiator Surge Tank Replacement (LE2) - Install
