Removal Procedure

WARNING: This page is about a different car, the 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
  1. Camshaft Cover Replacement  - Remove

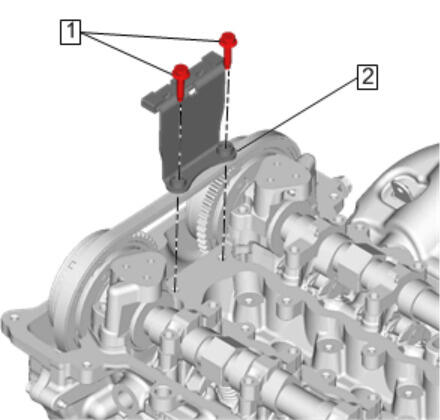

  2. GM3983101

    Timing Chain Guide Fastener(1) - Remove[2x]

  3. Timing Chain Upper Guide(2) - Remove
  4. Timing Chain Upper Guide - Inspect for excessive wear or damage. - Camshaft Timing Chain and Sprocket Cleaning and Inspection
