Removal Procedure

WARNING: This page is about a different car, the 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the engine oil. Engine Oil and Oil Filter Replacement

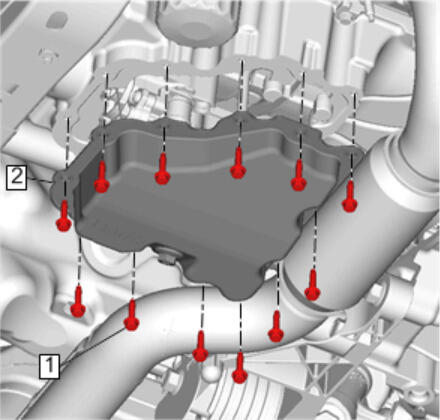

  2. GM3973482

    Lower Oil Pan Bolt(1) - Remove[12x]

    3. CAUTION:

    Always replace the used oil pan with a new oil pan. The lower oil pan becomes damaged during removal and oil leaks may occur if it is not replaced with a new oil pan.

  3. Lower Oil Pan(2) - Remove and DISCARD
  4. Clean and inspect all mating surfaces. Oil Pan Cleaning and Inspection
