Engine Support Fixture
WARNING: This page is about a different car, the 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

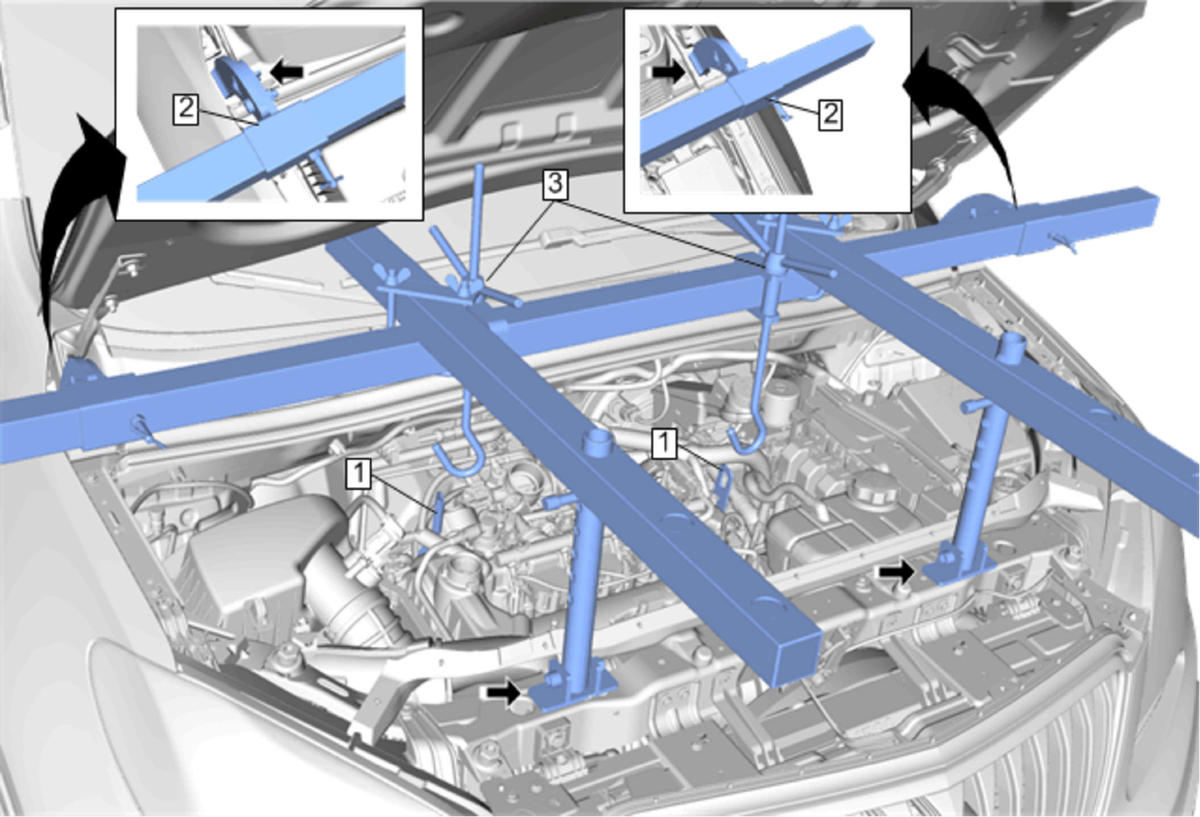

| Callout | Component Name |
|---|---|
|
Preliminary Procedures
Special Tools
|
|
| 1 | Engine Lift Brackets Procedure If engine lift brackets are not present, install engine lift brackets as needed. Engine Lift Front Bracket Replacement , or Engine Lift Rear Bracket Replacement |
| 2 | Support Brackets Procedure
NOTE:
Ensure that the engine support fixture only contacts the frame in the area indicated by arrows. Install the brackets to frame as shown. Do not install on top of fender lip. |
| 3 | Support Handle Procedure Connect the lift hooks and tighten the handles to raise the engine as needed. |
