Installation Procedure

WARNING: This page is about a different car, the 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

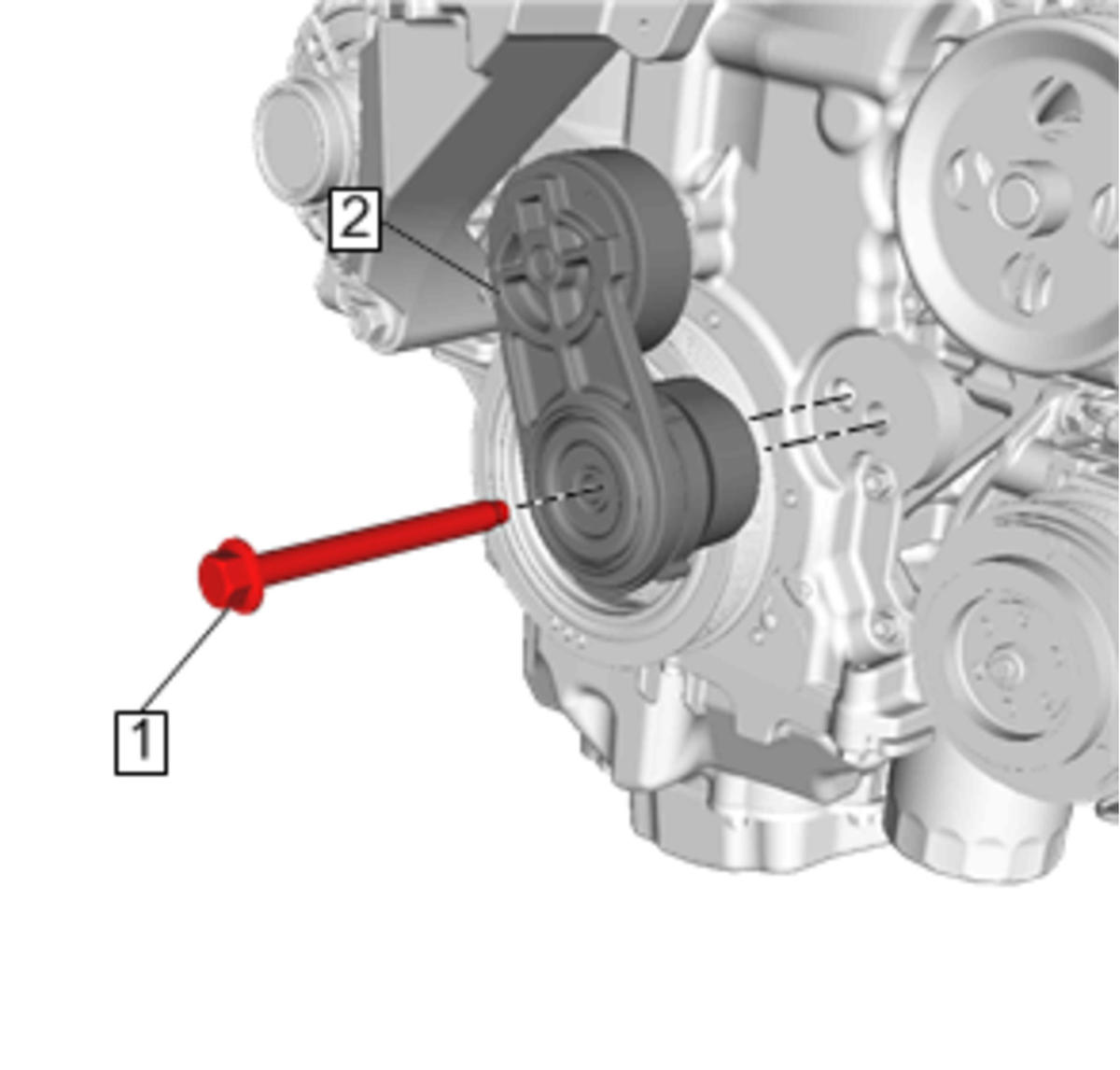

  1. GM4092372
    NOTE:

    Ensure that the drive belt tensioner notch fits into the engine front cover hole.

    Drive Belt Tensioner(2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Drive Belt Tensioner Fastener(1) - Install and tighten 58 N.m (43 lb ft)
  3. Drive Belt Replacement  - Install
